SOFTLINE HS

Force and beauty of nature

2
EPDM gaskets
od Ug = 0,5
GLASS THERMAL INSULATION
164/184/204 mm
INSTALLATION DEPTH
EPDM gaskets
2
GLASS THERMAL INSULATION
od Ug = 0,5
INSTALLATION DEPTH
164/184/204 mm

SOFTLINE HS

This wooden lift and slide terrace door is designed for large-size glazing to ensure the right amount of daylight in rooms. The modern production technology ensures the highest aesthetic values and quality.

Wood terrace system colour range

Choose your colour from a dozen colours of opaque paints (covering the entire wood structure) and stain paints for the wooden part of the window.
Bright oak
Meranthi
Palisander
Pine
Teak
Meranthi
Teak
Pine
White Softline
Nut
Pine
Nut
Meranthi
Dark Oak
Meranti
Maghoni
Pine
Dark Oak
Pine
Maghoni
Meranthi
Bright oak
Pine
Palisander
Meranthi
Choose colour:
Bright oak
Meranthi

Glass

DRUTEX, with over 25 years of experience in the production of composite glass, offers a very wide range of glass with which you can fit your windows and doors. They meet strict requirements for energy efficiency and sound insulation. The offer also includes laminated glass (safe and burglar-proof), sun protected glass, glass with enhanced sound insulation, tempered, ornamental and sandblasted glass.

Wood terrace systems

Create the terrace system that will meet your expectations.
Frames
Galvanised steel frame is the standard. Hoever It is possible to choose the Swisspacer Ultimate warm frame.
See all
Muntin bars
Muntin bars will add classic and timeless style to your windows and doors.
See all
Internal muntin bars
Internal muntin bars
Sizes: 8/18/26/45 mm
Vienna muntin bars
Vienna muntin bars
Size: 26 mm

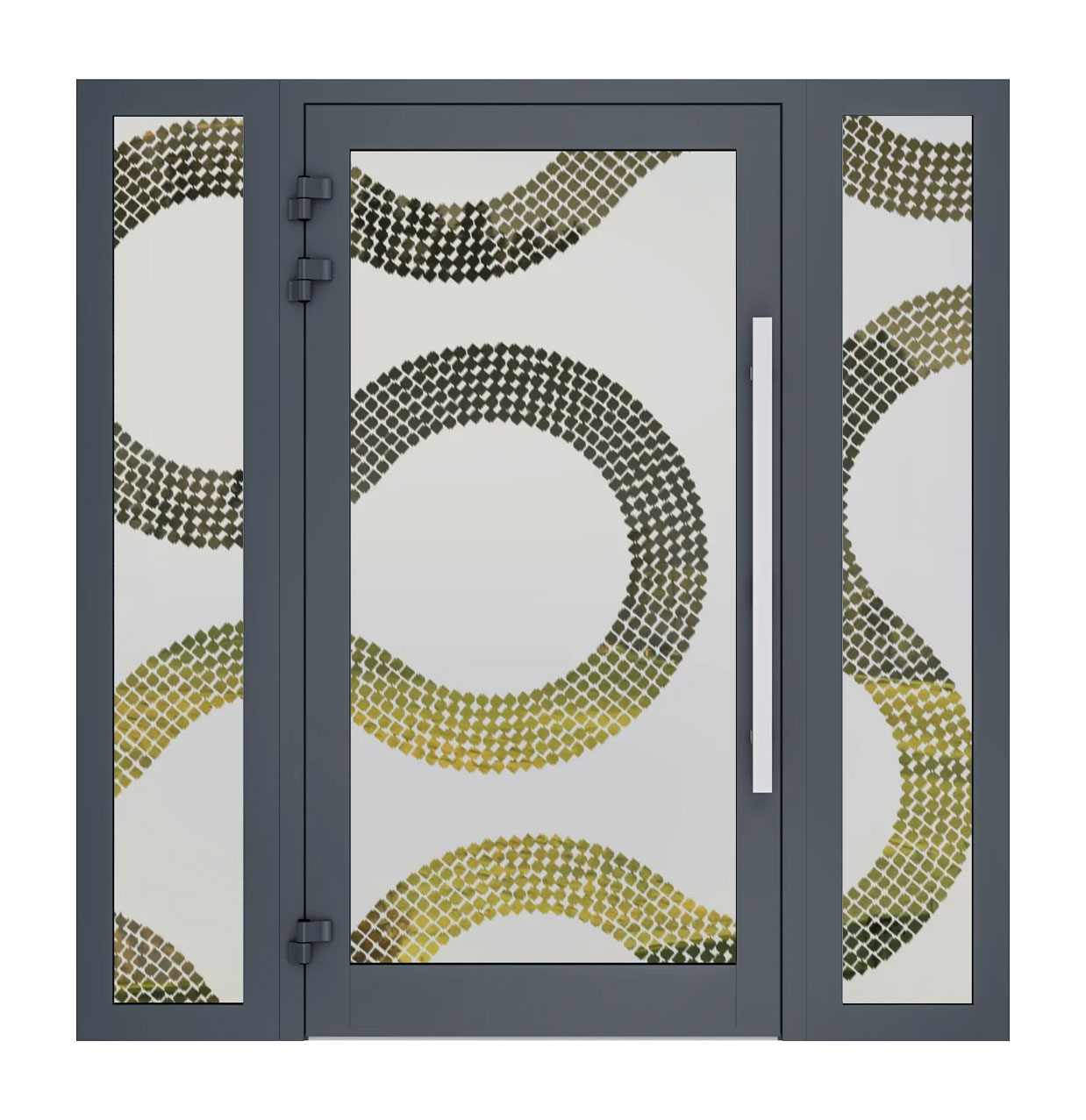

Sandblasted glass
Express your unique style on your windows and doors. We offer the possibility of creating any sandblasting pattern in three shades of gray.
See all

Compare products

Technical dataSOFTLINE HSSOFTLINE HSIGLO-HSIGLO-HSMB-77HS HIMB-77HS HIDUOLINE HSDUOLINE HS
Number of chambers

Solid profile

7

3

Solid profile

Installation depth

164/184/204 mm

194 mm

174 mm

194/214/234 mm

Number of gaskets

2

2

2

3

Thermal transmittance

PINE 68 Uw=1,06 *1 /  PINE 78 Uw=0,89 *2  /  PINE 88 Uw=0,83 *3
MERANTI 68 Uw=1,02 *1 /   MERANTI 78 Uw=0,85 *2   /  MERANTI 88 Uw=0,79 *3

*1 for terrace system 3600x2450 mm with glass Ug=0,8 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*2 for terrace system 3600x2450 mm with glass Ug=0,6 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*3 for terrace system 3600x2260 mm with glass Ug=0,5 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method

 Uw = 0,71 W/(m2K)*

*for a structure measuring 2,700 x 2,300 with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4

Uw = 1,0 W/(m2K)*

*for a structure measuring 4,000 x 2,200 with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4

PINE 68 Uw=1,0 *1  /   PINE 78 Uw=0,85 *2  /  PINE 88 Uw=0,79 *3
MERANTI 68 Uw=0,96 *1  /  MERANTI 78 Uw=0,80 *2  /  MERANTI 88 Uw=0,75 *3

*1 for terrace system 3600x2450 mm with glass Ug=0,8 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*2 for terrace system 3600x2450 mm with glass Ug=0,6 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*3 for terrace system 3600x2260 mm with glass Ug=0,5 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method

Glass packages

SL68: 24-32mm
SL78: 24-44mm
SL88: 24-54mm

36-52 mm

9-61 mm

DL68: 24-44mm
DL78: 24-50mm
DL88: 24-58mm
