IGLO 5 Classic

Proven solutions mean customer satisfaction

dB = 34-42

Sound insulation

EPDM gaskets

Uw = 0,94 W/(m²K)*

THERMAL TRANSMITTANCE

NUMBER OF CHAMBERS

70 mm

INSTALLATION DEPTH

Class profile

Sound insulation

dB = 34-42

EPDM gaskets

THERMAL TRANSMITTANCE

Uw = 0,94 W/(m²K)*

NUMBER OF CHAMBERS

INSTALLATION DEPTH

70 mm

Class profile

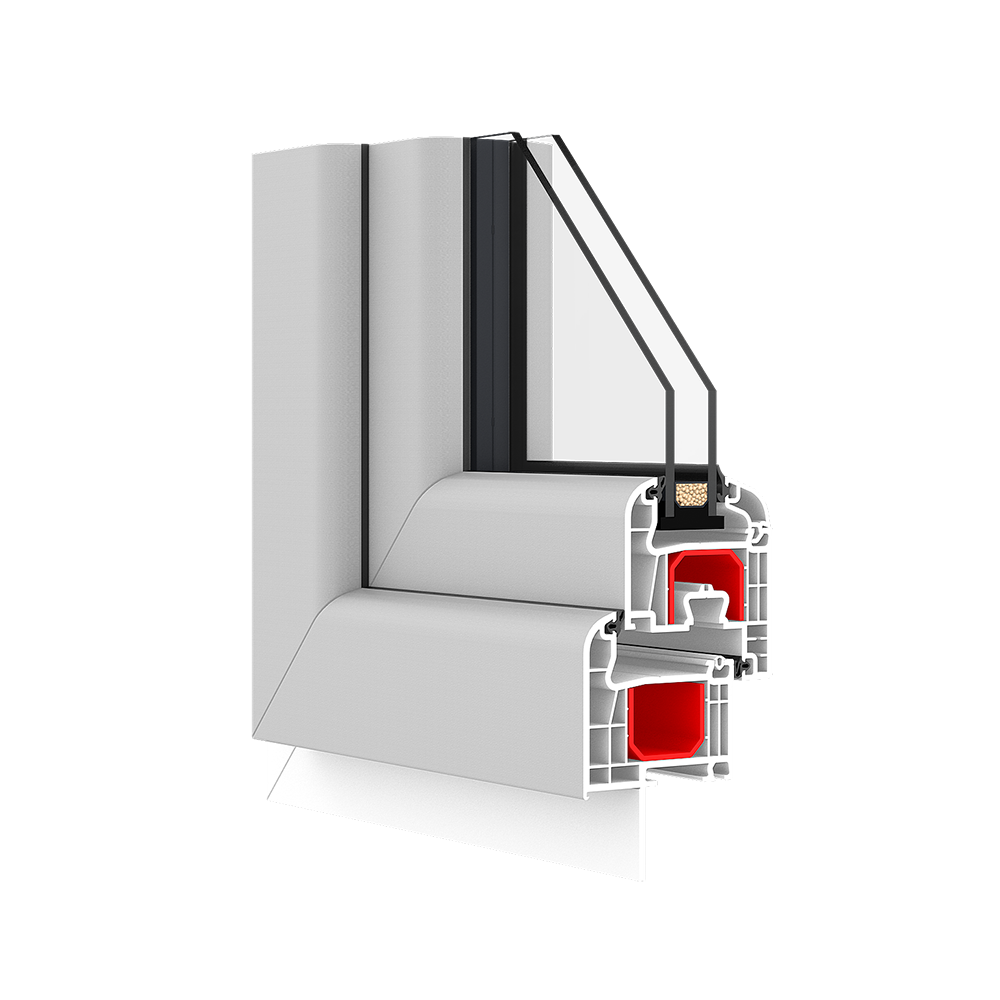

IGLO 5 Classic

Windows appreciated by Customers across the globe. They feature not only very good thermal insulation parameters but also excellent aesthetic values. With a wide range of Renolit veneers and numerous additional options, we can create the windows that will meet the expectations of the most demanding Customers.

Standard:

MACO MULTI-MATIC KS fittings with 2 anti-theft strikers with Silber-Look anticorrosion coating for long-lasting protection and smooth operation of the fitting
sash lifter (lifting mishandling device - depending on window height
microventilation in tilt and turn windows
hinge covers in 4 colours: white, silver, light brown, brown
aluminium handle
2-glazed (1-chamber) units infilled with argon gas with Ug = 1.1 W/(m²K)
galvanised steel glass-pane spacer optional Swisspacer Ultimate glass-pane spacer
2 EPDM gaskets in black (external and internal)
gasket filling the lower fittings groove
1.5 mm steel reinforcement for frame and sash (2 mm for balcony door sash), ,,c”-shaped
profile core in white
5-chamber PVC under-sill trim with gasket
The profile is available in three colours: white, anthracite and bronze.

Downloads

PVC WINDOWS

Brochure

PVC window colour range

Choose the colour that suits you. Over 30 veneer colours to choose from.

White FX
915205-168

White Sand U-Matt
9152

Crown Platinum
9.1293001-195

Creamy
1137905-167

Pyrite
02.12.17.000001-195

Sheffield Oak Light
F456-3081

Natural Oak
3118076-167

Light Grey
725105-167

Grey
715505-167

Concrete Grey
702305-167

Quartz Grey
703905-167

Quartz Grey Smooth
703905-097

Basalt Grey
701205-167

Basalt Grey Smooth
701205-097

Iron Glimmer Slate
(DB703) 1.0065002-097

Slate Grey Smooth
(7015) 02.11.71.000040-097

Graphite Sand
MAT 436-6023

Anthracite
701605-167

Anthracite Smooth
701605-097

Anthracite Ulti-Matt
02.20.71.000001-504700-047

Jet black
Jet black

Black Ulti-Matt
02.20.01.000002-504700-047

Golden Oak
2178001-167

Turner Oak
F470-3001

Turner Oak Toffee
470-3004

Turner Oak Walnut
470-3004

Winchester
49240015-148

Oregon
2115008-167

Douglas
3152009-167

Nut
Meranthi

Dark Oak
2052089-167

Palisander
Meranthi

Macore
3162002-167

Mahogany
2097013-167

Chocolate Brown
887505-167

Shine deep bronze
Mattex CC 470-1029

Moss green
1600505-167

Dark Green
612505-167

Dark Red
308105-167

Brylantowo Niebieski
500705-167

Steel Blue
1515005

Choose colour:

White FX

915205-168

Glass

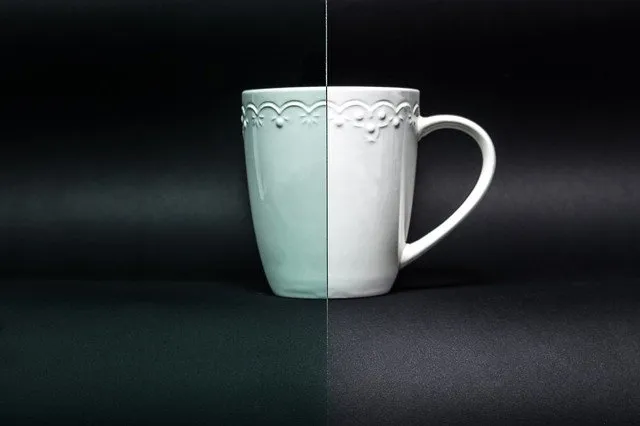

DRUTEX, with over 30 years of experience in the production of composite glass, offers a very wide range of glass with which you can fit your windows and doors. They meet strict requirements for energy efficiency and sound insulation. The offer also includes laminated glass (safe and burglar-proof), sun protected glass, glass with enhanced sound insulation, tempered, ornamental and sandblasted glass.

Additional options

Balcony thresholds

Explore the Drutex balcony door threshold options that enhance thermal insulation and prevent buckling.

See all

Frames

Galvanised steel frame is the standard. Hoever It is possible to choose the Swisspacer Ultimate warm frame.

See all

Muntin bars

Muntin bars will add classic and timeless style to your windows and doors.

See all

Reliable fittings

MACO fittings are the perfect solution in terms of security and functionality of windows and doors made of PVC, aluminium and wood.

See all

Renovation frames

The use of a renovation frame allows windows to be installed without removing the old window frames.

See all

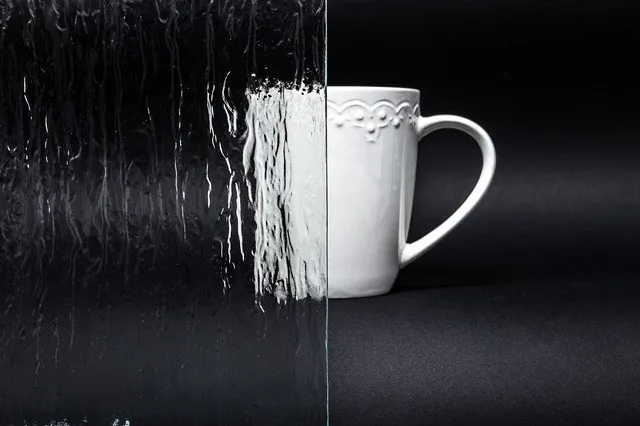

Sandblasted glass

Express your unique style on your windows and doors. We offer the possibility of creating any sandblasting pattern in three shades of gray.

See all

Ventilation

Thanks to our ventilators, your windows and doors will take care of proper ventilation and fresh air flow.

See all

Window sill PVC

See all

Mounting accessories

See all

Handles

Our PVC, aluminium and wood handles are distinguished by their high aesthetics, functionality and durability. Thanks to various colour options, they can be perfectly matched to the colour of the windows, doors, or the colour scheme of the building.

NEVADA RAL 8019

Window handle with a key - NEVADA (RAL7016)

Window handle with a key - NEVADA (RAL9001)

Window handle with a key - NEVADA (RAL9005)

Window handle with a key - NEVADA (RAL9016)

Window handle with a key - NEVADA (tytan F9)

MISTRAL F1

MISTRAL F9

MISTRAL RAL 9005

MISTRAL RAL 9016

Window handle with a key - MISTRAL (RAL7016)

Window handle with a key - MISTRAL (RAL9001)

Window handle with a key - MISTRAL (RAL9005)

Window handle with a key - MISTRAL (tytan F9)

MISTRAL RAL 7016

MISTRAL RAL 9001

MISTRAL RAL 9005

MISTRAL TYTAN F9

Window handle - DUBLIN (white RAL9016)

Window handle - DUBLIN (brown RAL8019)

Window handle - DUBLIN (RAL7016)

Window handle - DUBLIN (RAL9005)

Window handle - DUBLIN (silver)

Window handle with a key - DUBLIN (RAL7016)

Window handle with a key - DUBLIN (RAL9005)

KWADRAT F1

KWADRAT RAL 7016

KWADRAT RAL 8019

KWADRAT RAL 9016

Window handle with a key - DUBLIN (silver)

Window handle with a key - KWADRAT F1

Window handle with a key - KWADRAT F4

Window handle with a key - KWADRAT F9

Window handle with a key - KWADRAT (RAL 7016)

Window handle with a key - KWADRAT (RAL8019)

Window handle with a key - KWADRAT (RAL 9001)

Window handle with a key - KWADRAT (RAL 9005)

Window handle with a key - KWADRAT (RAL9016)

KWADRAT tytan F9

KWADRAT RAL 9001

KWADRAT RAL 9005

Hoppe Secustic window handle (white)

Hoppe Secustic window handle F1

Hoppe Secustic window handle F2

Hoppe Secustic window handle F4

Hoppe Secustic window handle F9

Window handle MA 1010 (stainless steel)

Window handle (brown)

Window handle (olive)

Hope Secustic window handle (brown)

Window handle with a key (white)

Window handle with a key (brown)

Window handle with a key - DUBLIN (white RAL9016)

Window handle with a key - DUBLIN (brown RAL8019)

Window handle with a key IE (white)

Window handle with a key IE (brown)

Window handle with a key (olive)

Window handle with a key IE (silver)

Window handle with a key (olive)

Window handle with a key (silver)

Window handle with a button (white)

Window handle with a button (brown)

Window handle with a button - DUBLIN (white - RAL9016)

Window handle with a button - DUBLIN (brown RAL8019)

Window handle with a button - DUBLIN (RAL7016)

Window handle with a button - DUBLIN (RAL9005)

Window handle with a button - DUBLIN (silver)

Window handle with a button (olive)

Window handle with a button (silver)

Compare products

Technical data	IGLO 5 Classic	Iglo EXT	IGLO Light	Iglo Premier	IGLO 5
Number of chambers	5	5	5	5	5
Installation depth	70 mm	70 mm	70 mm	70 mm	70 mm
Number of gaskets	2	2	2	2	2
Thermal transmittance	Uw = 0,94 W/(m²K)* *For a window measuring 1,230x1,480 mm – CSI in the Czech Republic Uw = 0.94 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar.	Uw = 0,89 W/(m²K)* *For a window measuring 1,230x1,480 mm – calculation method = 0.89 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar.	Uw = 1,0 W/(m²K)* *For a window measuring 1,230x1,480 mm – ift Rosenheim Uw = 1.0 W/(m2K) with steel reinforcement, for gas argon-filled glazing, coefficient Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar.	Uw = 0,89* W/(m²K)* *For a window measuring 1,230x1,480 mm – calculation method = 0.89 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar.	Uw = 0,94 W/(m²K)* *For a window measuring 1,230x1,480 mm – CSI in the Czech Republic Uw = 0.94 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar.
Glass packages	24-40 mm	24-40 mm	24-40 mm	24-40 mm	24-40 mm
Sound insulation	dB = 34-42	—	dB = 34	—	dB = 36-44
