MB-77HS HI

Create your space

EPDM gaskets

Uw = 1,0 W/(m²K)*

THERMAL TRANSMITTANCE

NUMBER OF CHAMBERS

174 mm

INSTALLATION DEPTH

EPDM gaskets

THERMAL TRANSMITTANCE

Uw = 1,0 W/(m²K)*

NUMBER OF CHAMBERS

INSTALLATION DEPTH

174 mm

MB-77HS HI

These aluminium terrace systems are an ideal solution to create trendy, large-size terrace and balcony glazing to give interiors a unique feel. With their extremely durable structure, you can use leaves up to 400 kg. A low aluminium threshold that can be hidden in the floor adds to its excellent functionality.

Aluminium terrace system colour range

Choose the colour that suits you from over 200 RAL colours. We offer smooth matt and metallic paints that have a texture or have the so-called special effects (mainly wood-like).

We make every effort to ensure that the images shown reproduce the actual colours of the products as accurately as possible. Please note, however, that due to individual monitor and graphics card settings, the displayed colours may differ from the originals.

Choose colour:

Orange brown

RAL-8023

Glass

DRUTEX, with over 40 years of experience in the production of composite glass, offers a very wide range of glass with which you can fit your windows and doors. They meet strict requirements for energy efficiency and sound insulation. The offer also includes laminated glass (safe and burglar-proof), sun protected glass, glass with enhanced sound insulation, tempered, ornamental and sandblasted glass.

Systemy tarasowe z aluminium

Stwórz drzwi tarasowe, które spełnią Twoje oczekiwania.

Frames

Galvanised steel frame is the standard. Hoever It is possible to choose the Swisspacer Ultimate warm frame.

See all

Muntin bars

Muntin bars will add classic and timeless style to your windows and doors.

See all

Reliable fittings

MACO fittings are the perfect solution in terms of security and functionality of windows and doors made of PVC, aluminium and wood.

See all

Sandblasted glass

Express your unique style on your windows and doors. We offer the possibility of creating any sandblasting pattern in three shades of gray.

See all

Mounting accessories

See all

Compare products

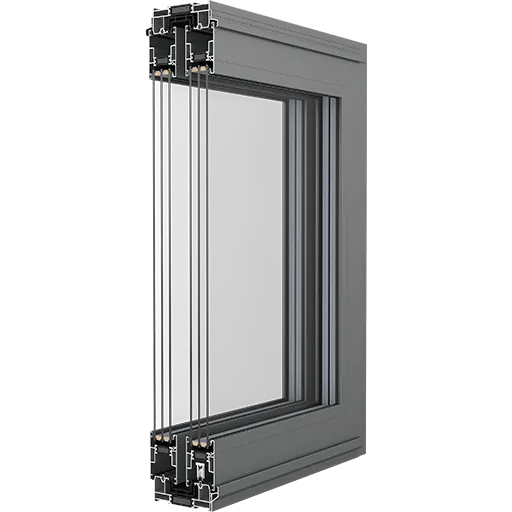

Technical data	MB-77HS HI	MB-59HS HI	MB-77HS HI MONORAIL	IGLO-HS	IGLO-HS ALUCOVER	DUOLINE HS	SOFTLINE HS
Number of chambers	3	3	3	7	7	Solid profile	Solid profile
Installation depth	174 mm	174 mm	174 mm	194 mm	206 mm	194/214/234 mm	164/184/204 mm
Number of gaskets	2	2	2	2	2	3	2
Thermal transmittance	Uw = 1,0 W/(m²K)* *for a structure measuring 4,000 x 2,200 with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4	Uw = 1,8 W/(m²K)* *for a structure measuring 4,000 x 2,200 with T4 glass + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4	Uw = 0,75 W/(m²K)* *for a structure measuring 4,000 x 2,200 with T4 glass + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4	Uw = 0,71 W/(m²K)* *for a structure measuring 2,700 x 2,300 with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4	Uw = 0,73 W/(m²K)* *for a structure measuring 4000x2500mm with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4	PINE 68 Uw=1,0 ¹ / PINE 78 Uw=0,85 ² / PINE 88 Uw=0,79 ³ MERANTI 68 Uw=0,96 ¹ / MERANTI 78 Uw=0,80 ² / MERANTI 88 Uw=0,75 ³ 1 for terrace system 3600x2450 mm with glass Ug=0,8 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method 2 for terrace system 3600x2450 mm with glass Ug=0,6 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method *3 for terrace system 3600x2260 mm with glass Ug=0,5 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method	PINE 68 Uw=1,06 ¹/ PINE 78 Uw=0,89 ² / PINE 88 Uw=0,83 ³ MERANTI 68 Uw=1,02 ¹ / MERANTI 78 Uw=0,85 ² / MERANTI 88 Uw=0,79 ³ 1 for terrace system 3600x2450 mm with glass Ug=0,8 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method 2 for terrace system 3600x2450 mm with glass Ug=0,6 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method *3 for terrace system 3600x2260 mm with glass Ug=0,5 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
Glass packages	9-61 mm	9-61 mm	9-61 mm	36-52 mm	36-52 mm	DL68: 24-44mm DL78: 24-50mm DL88: 24-58mm	SL68: 24-32mm SL78: 24-44mm SL88: 24-54mm
