IGLO Energy Classic
The best parameters concealed in modern design
IGLO Energy Classic

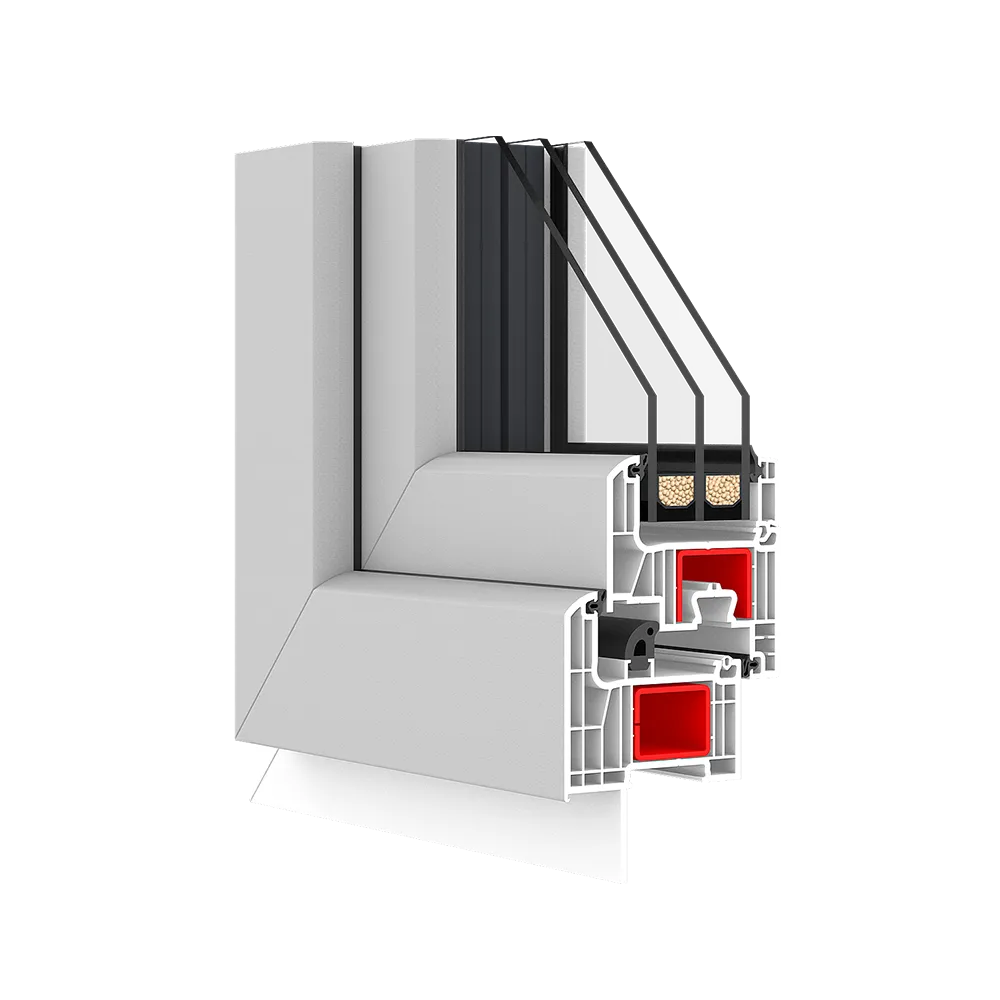

A unique design where you can choose the square-shaped glazing bead to reflect the latest architectural trends. The remarkable thermal insulation parameters are ensured by the optimum 7-chamber profile structure, a specially designed sealing system made of foamed EPDM and glass packages with high thermal insulation parameters.
- The profile is available in three colours: white, anthracite and bronze.
PVC window colour range
701605-097
703905-097
701205-097
702305-167
915205-168
1137905-167
887505-167
2178007-167
1600505-167
49240015-148
612505-167
715505-167
2052089-167
3162002-167
701605-167
851805-167
308105-167
703905-167
2115008-167
3152009-167
2178001-167
2097013-167
02.20.71.000001-504700-047
3118076-167
725105-167
701205-167
F456-3081
9.1293001-195
(7015) 02.11.71.000040-097
(DB703) 1.0065002-097
02.20.01.000002-504700-047
F470-3001
Jet black
02.12.17.000001-195
Glass
Extras
Sizes: 27/45/65 mm
Sizes: 8/18/26/45 mm
Handles
Compare products
Technical data | IGLO Energy Classic | IGLO ENERGY ALUCOVER | Iglo EXT | IGLO Light | IGLO Energy | IGLO EDGE | Iglo Premier | IGLO 5 | IGLO 5 Classic |
---|---|---|---|---|---|---|---|---|---|
Number of chambers | 7 | 7 | 5 | 5 | 7 | 7 | 5 | 5 | 5 |
Installation depth | 82 mm | 70 mm | 70 mm | 82 mm | 82 mm | 70 mm | 70 mm | 70 mm | |
Number of gaskets | 3 | 3 | 2 | 2 | 3 | 3 | 2 | 2 | 2 |
Thermal transmittance | from Uw = 0,81 W/(m2K)* | Uw = 0,79 W/(m2K)* *For a window measuring 1,230x1,480 mm – CSI in the Czech Republic Uw = 0.79 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,89 W/(m2K)* | Uw = 1,0 W/(m2K)* | Uw = 0,79 W/(m2K)* *For a window measuring 1,230x1,480 mm – CSI in the Czech Republic Uw = 0.79 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,69 W/(m2K)* | Uw = 0,89* W/(m2K)* *For a window measuring 1,230x1,480 mm – calculation method = 0.89 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,94 W/(m2K)* *For a window measuring 1,230x1,480 mm – CSI in the Czech Republic Uw = 0.94 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,94 W/(m2K)* *For a window measuring 1,230x1,480 mm – CSI in the Czech Republic Uw = 0.94 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar. |
Glass packages | 24-52 mm | 24-48 mm | 24-40 mm | 24-40 mm | 24-48 mm | 24-58 mm | 24-40 mm | 24-40 mm | 24-40 mm |
Sound insulation | dB = 36-42 | - | — | dB = 34 | dB = 37-46 | — | — | dB = 36-44 | dB = 34-42 |
