IDEAL NEO MD-FS

dB = 36

Sound insulation

Uw = 0,73 W/(m²K)*

THERMAL TRANSMITTANCE

NUMBER OF CHAMBERS

76 mm

INSTALLATION DEPTH

Gaskets

36-68 mm

Glass packages

Sound insulation

dB = 36

THERMAL TRANSMITTANCE

Uw = 0,73 W/(m²K)*

NUMBER OF CHAMBERS

INSTALLATION DEPTH

76 mm

Gaskets

Glass packages

36-68 mm

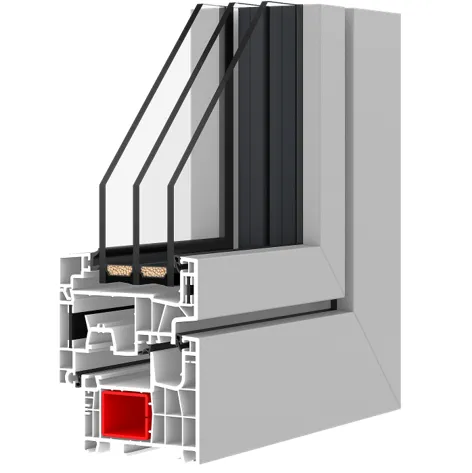

IDEAL NEO MD-FS

to niezwykle atrakcyjna wzorniczo propozycja dla klientów ceniących ponadczasową stylistykę. Prosty, symetryczny, kubistyczny kształt to wyróżnik systemu. Mocne kąty i geometryczna architektura, a przy tym wizualna lekkość konstrukcji.

Wyposażenie standardowe:

dwukomorowy pakiet szybowy Ug = 0,5 W/(m²K)
ciepła ramka tworzywowa Swisspacer Ultimate - jako opcja bezpłatna
zgrzew V-Perfect
4 zaczepy antywyważeniowe w zależności od wielkości skrzydła i systemu okuć
mikrowentylacja
klamka aluminiowa
mechanizm blokady błędnego położenia klamki
uszczelki obwiedniowe, przyszybowe oraz centralna w kolorze czarnym lub szarym
wypełnienie dolnego rowka okuciowego
listwa podparapetowa

Downloads

PVC WINDOWS

Brochure

Kolorystyka okien PVC

Wybierz kolor, który pasuje do Ciebie.

Anthracite Smooth
701605-097

Anthracite Ulti-Matt
02.20.71.000001-504700-047

Basalt Grey
701205-167

Basalt Grey Smooth
701205-097

Concrete Grey
702305-167

White FX
915205-168

White Ulti-Matt
S30.30.70.0057.001

Chocolate Brown
887505-167

Dark Red
308105-167

Dark Oak
Pine

Dark Green
612505-167

Anthracite
701605-167

Crown Platinum
9.1293001-195

Black Ulti-Matt
02.20.01.000002-504700-047

Sheffield Oak Light
F456-3081

Natural Oak
3118076-167

Douglas
3152009-167

Light Grey
725105-167

Jet black
Jet black

Creamy
1137905-167

Iron Glimmer Slate
(DB703) 1.0065002-097

Slate Grey Smooth
(7015) 02.11.71.000040-097

Mahogany
2097013-167

Macore
3162002-167

Oregon
2115008-167

Nut
Meranthi

Palisander
Meranthi

Pyrite
02.12.17.000001-195

Grey
715505-167

Golden Oak
2178001-167

Quartz Grey
703905-167

Quartz Grey Smooth
703905-097

Turner Oak
F470-3001

Winchester
49240015-148

moss green
61

We make every effort to ensure that the images shown reproduce the actual colours of the products as accurately as possible. Please note, however, that due to individual monitor and graphics card settings, the displayed colours may differ from the originals.

Wybierz kolor:

Anthracite Smooth

701605-097

Glass

DRUTEX, with over 40 years of experience in the production of composite glass, offers a very wide range of glass with which you can fit your windows and doors. They meet strict requirements for energy efficiency and sound insulation. The offer also includes laminated glass (safe and burglar-proof), sun protected glass, glass with enhanced sound insulation, tempered, ornamental and sandblasted glass.

Additional options

Frames

Galvanised steel frame is the standard. Hoever It is possible to choose the Swisspacer Ultimate warm frame.

See all

Reliable fittings

MACO fittings are the perfect solution in terms of security and functionality of windows and doors made of PVC, aluminium and wood.

See all

Sandblasted glass

Express your unique style on your windows and doors. We offer the possibility of creating any sandblasting pattern in three shades of gray.

See all

Ventilation

Thanks to our ventilators, your windows and doors will take care of proper ventilation and fresh air flow.

See all

Mounting accessories

See all

Handles

Our PVC, aluminium and wood handles are distinguished by their high aesthetics, functionality and durability. Thanks to various colour options, they can be perfectly matched to the colour of the windows, doors, or the colour scheme of the building.

1033 - Window handle - F1

1033 - Window handle - F4

1033 - Window handle - RAL7016

1033 - Window handle - RAL8019

1033 - Window handle - RAL9005

1033 - Window handle - RAL9016

1033 - Window handle with a key - F1

1033 - Window handle with a key - F4

1033 - Window handle with a key - RAL7016

1033 - Window handle with a key - RAL8019

1033 - Window handle with a key - RAL9005

1033 - Window handle with a key - RAL9016

1033 - Balcony door handle - F1

1033 - Balcony door handle - F4

1033 - Balcony door handle - RAL7016

1033 - Balcony door handle - RAL8019

1033 - Balcony door handle - RAL9005

1033 - Balcony door handle - RAL9016

MISTRAL - Window handle - F1

MISTRAL - Window handle - F4

MISTRAL - Window handle - F9

MISTRAL - Window handle - RAL7016

MISTRAL - Window handle - RAL8019

MISTRAL - Window handle - RAL9001

MISTRAL - Window handle - RAL9005

MISTRAL - Window handle - RAL9016

MISTRAL - Window handle with a key - F9

MISTRAL - Window handle with a key - RAL7016

MISTRAL - Window handle with a key - RAL9001

MISTRAL - Window handle with a key - RAL9005

MISTRAL - Window handle with a key - RAL9016

1033 - Window handle - F1

1033 - Window handle - F4

1033 - Window handle - RAL9005

1033 - Window handle - RAL9016

Atlanta - Window handle - F1

Atlanta - Window handle - F2

Atlanta - Window handle - F4

Atlanta - Window handle - F9

Atlanta - Window handle - RAL8019

Atlanta - Window handle - RAL9005

Atlanta - Window handle - RAL9016

Atlanta - Window handle with a button - F1

Atlanta - Window handle with a button - F4

Atlanta - Window handle with a button - F9

Atlanta - Window handle with a button - RAL8019

Atlanta - Window handle with a button - RAL9005

Atlanta - Window handle with a button - RAL9016

Atlanta - Window handle with a key - F1

Atlanta - Window handle with a key - F2

Atlanta - Window handle with a key - F4

Atlanta - Window handle with a key - RAL8019

Atlanta - Window handle with a key - RAL9005

Atlanta - Window handle with a key - RAL9016

Removable - Window handle - F1

Removable - Window handle - F4

Removable - Window handle - RAL8019

Removable - Window handle - RAL9016

Veranda door handle - RAL9016

Balcony door handle - F1

Balcony door handle - RAL8019

Veranda door handle - RAL8019

Veranda door handle - RAL9005

Veranda door handle - F1

Veranda door handle - RAL8019

Balcony door handle - F1

Balcony door handle - RAL9005

Veranda door handle - F4

Balcony door handle - RAL9016

Veranda door handle - RAL9005

Balcony door handle - F4

Veranda door handle - F4

TBT - Window handle with a key - RAL9005

Balcony door handle - RAL9016

TBT - Window handle with a key - F1

Balcony door handle - F4

Veranda door handle - RAL7016

Veranda door handle - F1

TBT - Window handle with a key - RAL9016

Balcony door handle - RAL9005

TBT - Window handle with a key - RAL8019

Balcony door handle - RAL7016

Veranda door handle - RAL9016

TBT - Window handle with a key - F4

Veranda door handle - RAL7016

Balcony door handle - RAL8019

Balcony door handle - RAL7016

TOULON Secuforte - Window handle - F1

TOULON Secuforte - Window handle - RAL9016

TOULON Secustik - Window handle - RAL9016

TOULON Secustik - Window handle - RAL9005

TOULON Secuforte - Window handle - RAL9005

TOULON Secustik - Window handle - F1

TOULON Secuforte - Window handle - F4

TOULON Secustik - Window handle - F4

SQUARE - Window handle with a key - F4

SQUARE - Window handle with a key - RAL9005

SQUARE - Window handle - F9

SQUARE - Window handle with a key - RAL9016

SQUARE - Window handle - F4

SQUARE - Window handle with a key - F9

SQUARE - Window handle with a key - F1

SQUARE - Window handle with a key - RAL8019

SQUARE - Window handle - RAL9005

SQUARE - Window handle - RAL9016

SQUARE - Window handle - RAL8019

SQUARE - Window handle - RAL9001

SQUARE - Window handle - F1

SQUARE - Window handle with a key - RAL9001

SQUARE - Window handle - RAL7016

SQUARE - Window handle with a key - RAL7016

Hoppe Secustic - Window handle - F4

Hoppe Secustic - Window handle - F2

Hoppe Secustic - Window handle - RAL9016

Hoppe Secustic - Window handle - F71

Hoppe Secustic - Window handle - F9

Hoppe Secustic - Window handle - RAL8019

Hoppe Secustic - Window handle - F1

Window handle MA 1010 (stainless steel)

Window handle - RAL8019

Window handle with a key - RAL9016

Window handle with a key - RAL8019

Window handle with a key - olive

Window handle with a key - silver

Window handle with a button - RAL9016

Window handle with a button - RAL8019

DUBLIN - Window handle with a button - F4

DUBLIN - Window handle - RAL9016

DUBLIN - Window handle with a button - RAL9005

DUBLIN - Window handle with a button - RAL9016

DUBLIN - Window handle - RAL7016

DUBLIN - Window handle - silver

DUBLIN - Window handle with a key - RAL9005

DUBLIN - Window handle with a key - RAL8019

DUBLIN - Window handle with a button - RAL7016

DUBLIN - Window handle with a button - RAL8019

DUBLIN - Window handle with a key - RAL9016

DUBLIN - Window handle - F4

DUBLIN - Window handle with a button - silver

DUBLIN - Window handle with a key - RAL7016

DUBLIN - Window handle - RAL9005

DUBLIN - Window handle with a key - silver

DUBLIN - Window handle - RAL8019

DUBLIN - Window handle with a key - F4

Window handle with a button - olive

Window handle with a button - silver

Compare products

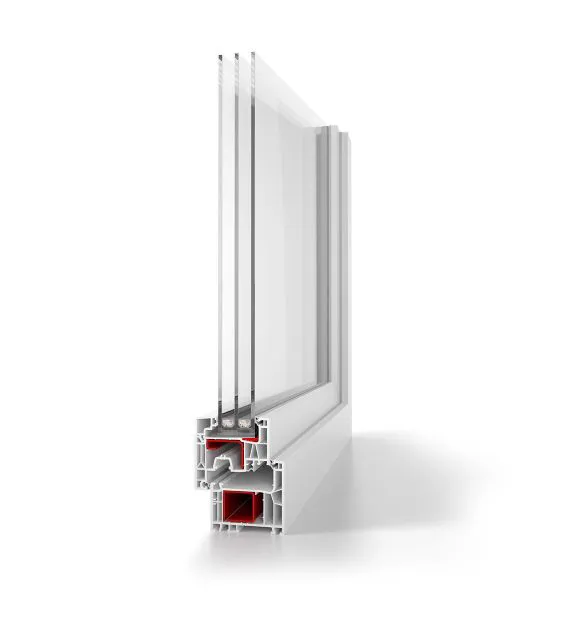

Technical data	IDEAL NEO MD-FS	IDEAL NEO AD	IGLO EDGE	IGLO Energy Classic
Number of chambers	6	5/6	7	7
Installation depth	76 mm	76 mm	82 mm	82 mm
Number of gaskets	3	2	3	3
Thermal transmittance	Uw = 0,73 W/(m²K)* *For a window measuring 1,230x1,480 mm, with the argon gas-filled glass package Ug = 0.5 W/(m²K), with the Swisspacer plastic spacer bar.	Uw = 0,79 W/(m²K)* *For a window measuring 1,230x1,480 mm, with the argon gas-filled glass package Ug = 0.5 W/(m²K), with the Swisspacer plastic spacer bar.	Uw = 0,69 W/(m²K)* *For a window measuring 1,230x1,480 mm – CSI in the Czech Republic Uw = 0.69W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.4 W/(m2K), with the Swisspacer plastic spacer bar.	from Uw = 0,81 W/(m²K)* *For a window measuring 1,230x1,480 mm – CSI in the Czech Republic Uw = 0.81 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar.
Glass packages	36-68 mm	24-54 mm	24-58 mm	24-52 mm
Sound insulation	dB = 36	dB = 36	—	dB = 36-42
