IGLO-HS ALUCOVER

3
EPDM gaskets
Uw = 0,71 W/(m2K)*
THERMAL TRANSMITTANCE
7
NUMBER OF CHAMBERS
194 mm
INSTALLATION DEPTH
36-52 mm
Glass packages
EPDM gaskets
3
THERMAL TRANSMITTANCE
Uw = 0,71 W/(m2K)*
NUMBER OF CHAMBERS
7
INSTALLATION DEPTH
194 mm
Glass packages
36-52 mm

IGLO-HS ALUCOVER

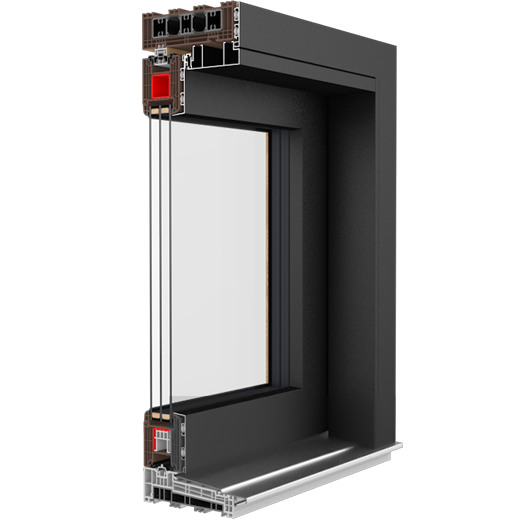

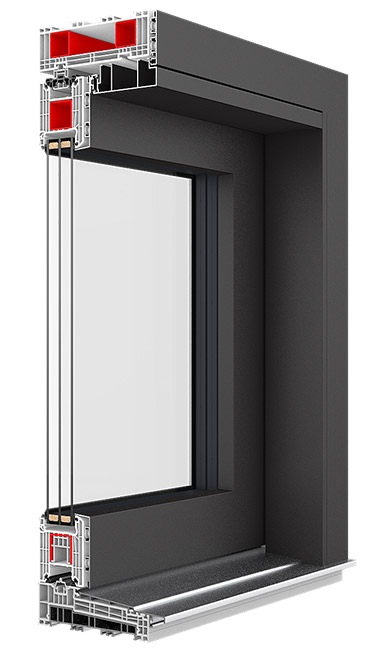

The IGLO-HS Alucover lift-and-slide door system is a solution designed for modern architecture and large terrace glazing. The structure combines the robustness of IGLO-HS profiles with an elegant aluminium cladding on the exterior side, ensuring high durability, resistance to weather conditions and outstanding aesthetics.

IGLO-HS Alucover is the ideal solution for those who expect comfort of use, modern design and a panoramic view of the surroundings.

AS STANDARD:
  • Swisspacer Ultimate edge
  • rectangular glazing bead
  • aluminum handle
  • V-Perfect weld
  • RAL matt varnishb

SEE THE IGLO ENERGY ALUCOVER WINDOW

Kolorystyka systemu tarasowego PVC

Wybierz kolor, który pasuje do Ciebie. Wizualizacje mają charakter poglądowy i służą wyłącznie celom prezentacyjnym. Mogą nie odwzorowywać rzeczywistego koloru, struktury ani wykończenia produktu.
indoor view
outdoor view
White FX
915205-168
White Sand U-Matt
9152
Crown Platinum
9.1293001-195
Creamy
1137905-167
Pyrite
02.12.17.000001-195
Sheffield Oak Light
F456-3081
Natural Oak
3118076-167
Light Grey
725105-167
Grey
715505-167
Concrete Grey
702305-167
Quartz Grey
703905-167
Quartz Grey Smooth
703905-097
Basalt Grey
701205-167
Basalt Grey Smooth
701205-097
Iron Glimmer Slate
(DB703) 1.0065002-097
Slate Grey Smooth
(7015) 02.11.71.000040-097
Graphite Sand
MAT 436-6023
Anthracite
701605-167
Anthracite Smooth
701605-097
Anthracite Ulti-Matt
02.20.71.000001-504700-047
Jet black
Jet black
Black Ulti-Matt
02.20.01.000002-504700-047
Golden Oak
2178001-167
Turner Oak
F470-3001
Turner Oak Toffee
470-3004
Turner Oak Walnut
470-9036
Winchester
49240015-148
Oregon
2115008-167
Douglas
3152009-167
Nut
Meranthi
Dark Oak
2052089-167
Palisander
Meranthi
Macore
3162002-167
Mahogany
2097013-167
Chocolate Brown
887505-167
Shine deep bronze
Mattex CC 470-1029
Moss green
1600505-167
Dark Green
612505-167
Dark Red
308105-167
Brylantowo Niebieski
500705-167
Steel Blue
1515005

We make every effort to ensure that the images shown reproduce the actual colours of the products as accurately as possible. Please note, however, that due to individual monitor and graphics card settings, the displayed colours may differ from the originals.

Wybierz kolor dla części PVC:
White FX
915205-168
Wybierz kolor dla części aluminiowej:
Orange brown
RAL-8023

Glass

DRUTEX, with over 40 years of experience in the production of composite glass, offers a very wide range of glass with which you can fit your windows and doors. They meet strict requirements for energy efficiency and sound insulation. The offer also includes laminated glass (safe and burglar-proof), sun protected glass, glass with enhanced sound insulation, tempered, ornamental and sandblasted glass.

Systemy tarasowe PVC

Stwórz system tarasowy, który spełni Twoje oczekiwania.
Frames
Galvanised steel frame is the standard. Hoever It is possible to choose the Swisspacer Ultimate warm frame.
See all
Muntin bars
Muntin bars will add classic and timeless style to your windows and doors.
See all
Glue-on muntin bars
Glue-on muntin bars
Sizes: 27/45/65 mm
Internal muntin bars
Internal muntin bars
Sizes: 8/18/26/45 mm
Sandblasted glass
Express your unique style on your windows and doors. We offer the possibility of creating any sandblasting pattern in three shades of gray.
See all
Mounting accessories
See all

Compare products

Technical dataIGLO-HS ALUCOVERIGLO-HS ALUCOVERMB-77HS HI MONORAILMB-77HS HI MONORAILIGLO-HSIGLO-HSMB-77HS HIMB-77HS HIDUOLINE HSDUOLINE HS
Number of chambers

7

3

7

3

Solid profile

Installation depth

206 mm

174 mm

194 mm

174 mm

194/214/234 mm

Number of gaskets

2

2

2

2

3

Thermal transmittance

 Uw = 0,73 W/(m2K)*

*for a structure measuring 4000x2500mm with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4

Uw = 0,75 W/(m2K)*

*for a structure measuring 4,000 x 2,200 with T4 glass + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4

 Uw = 0,71 W/(m2K)*

*for a structure measuring 2,700 x 2,300 with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4

Uw = 1,0 W/(m2K)*

*for a structure measuring 4,000 x 2,200 with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4

PINE 68 Uw=1,0 *1  /   PINE 78 Uw=0,85 *2  /  PINE 88 Uw=0,79 *3
MERANTI 68 Uw=0,96 *1  /  MERANTI 78 Uw=0,80 *2  /  MERANTI 88 Uw=0,75 *3

*1 for terrace system 3600x2450 mm with glass Ug=0,8 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*2 for terrace system 3600x2450 mm with glass Ug=0,6 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*3 for terrace system 3600x2260 mm with glass Ug=0,5 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method

Glass packages

36-52 mm

9-61 mm

36-52 mm

9-61 mm

DL68: 24-44mm
DL78: 24-50mm
DL88: 24-58mm
