PIVOT
Exterior doors with offset pivot
2
EPDM gaskets
Ud > 0,73 W/(m2K)
THERMAL TRANSMITTANCE
3
NUMBER OF CHAMBERS
77 mm
INSTALLATION DEPTH
EPDM gaskets
2
THERMAL TRANSMITTANCE
Ud > 0,73 W/(m2K)
NUMBER OF CHAMBERS
3
INSTALLATION DEPTH
77 mm
PIVOT

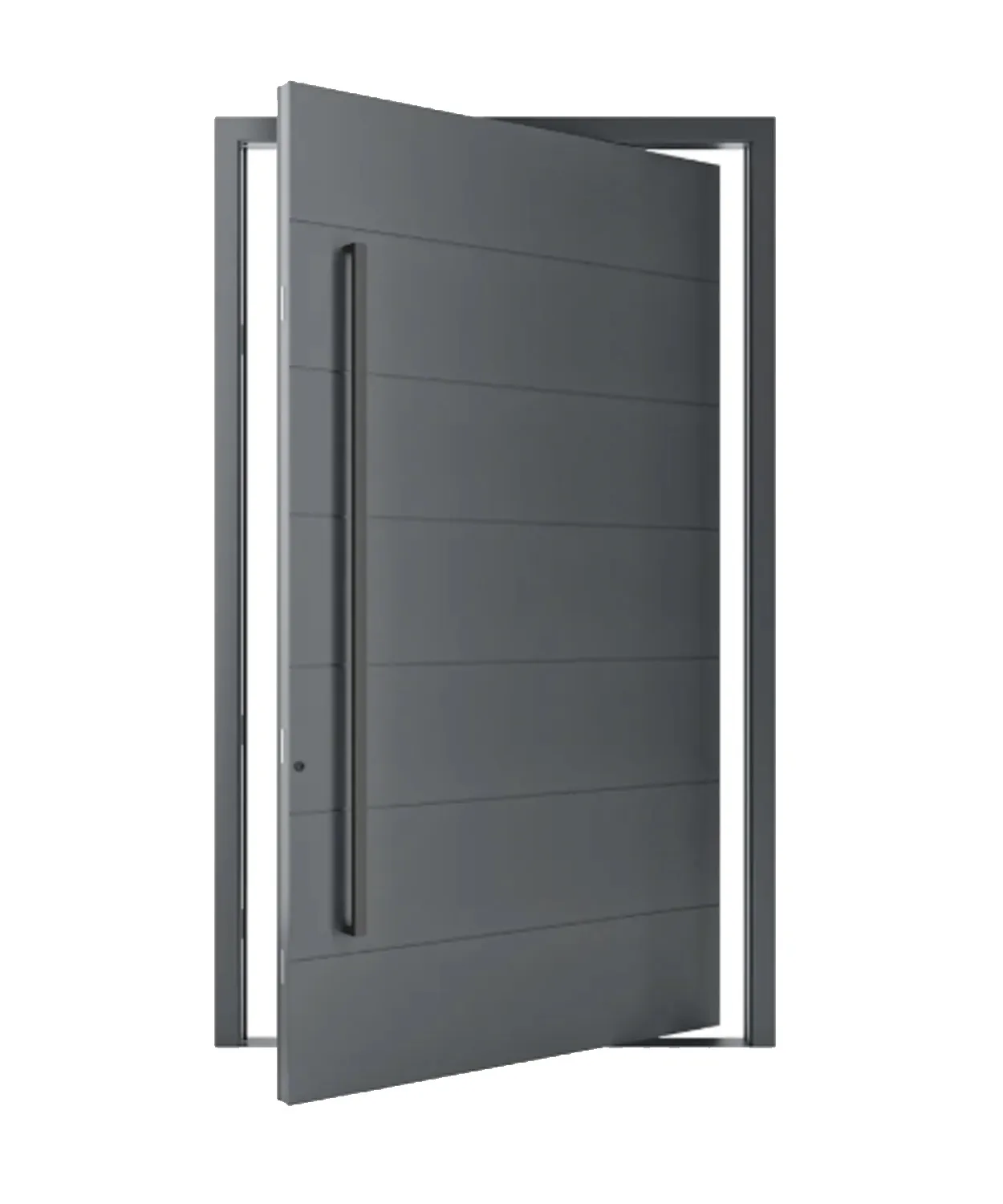

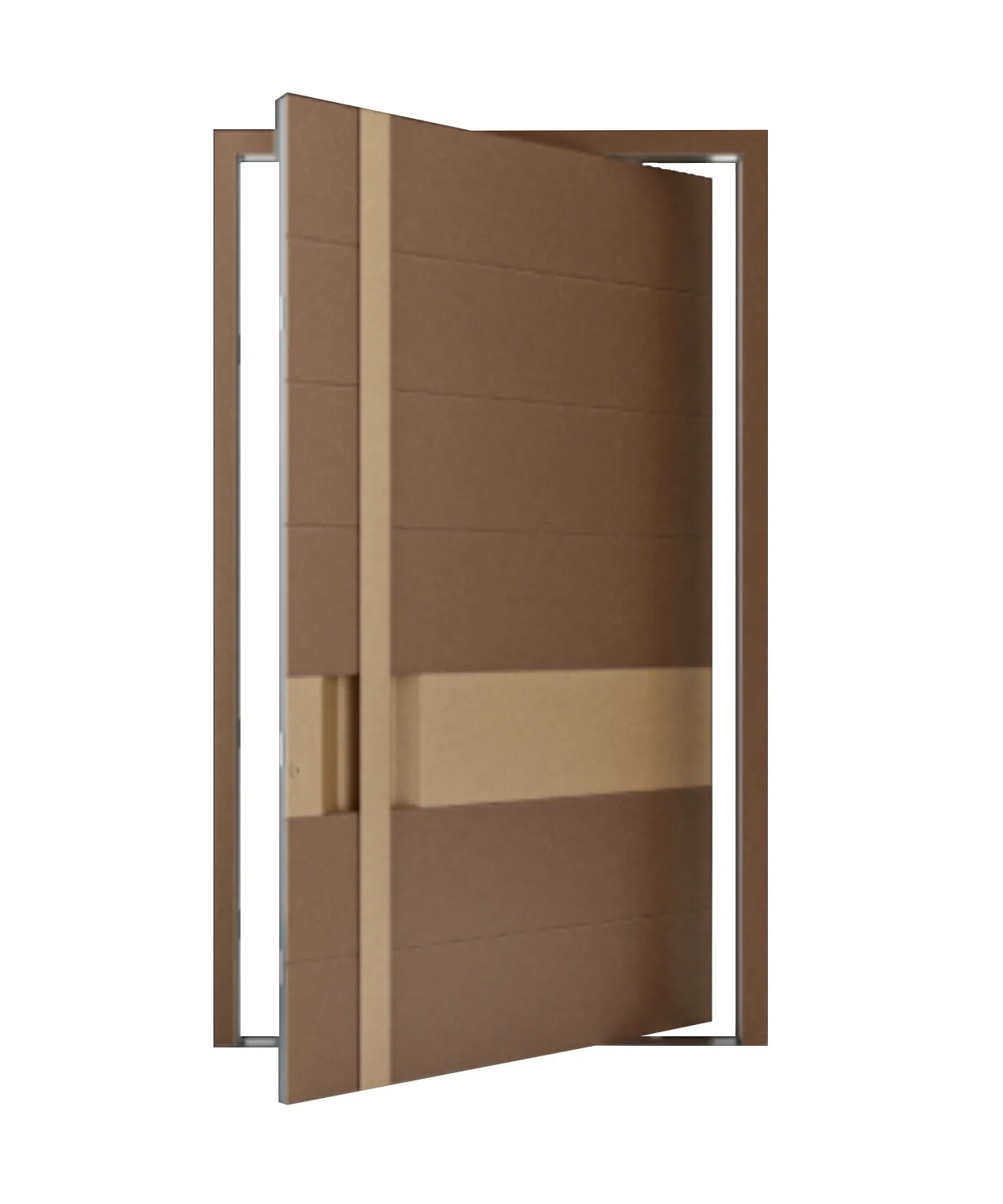

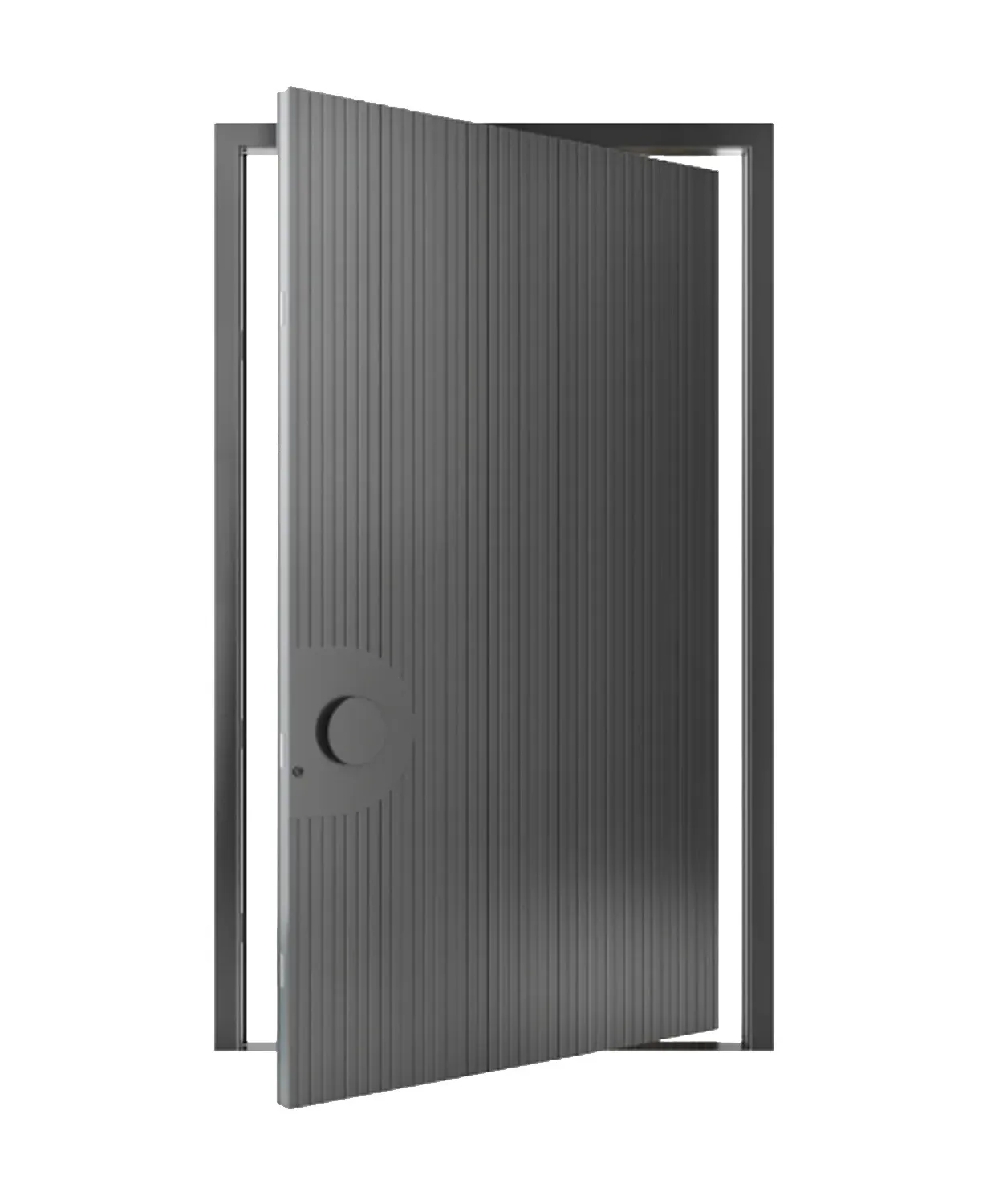

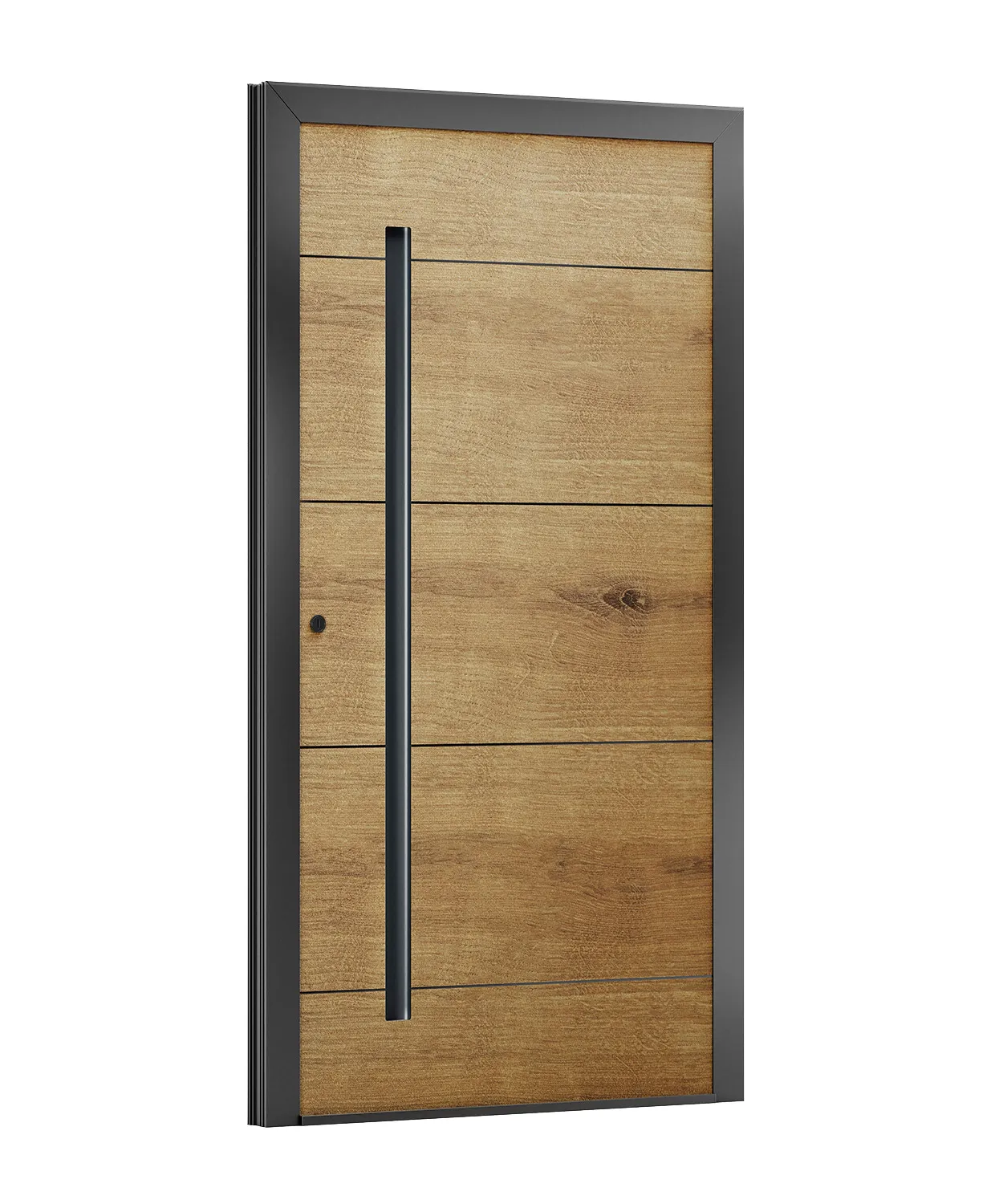

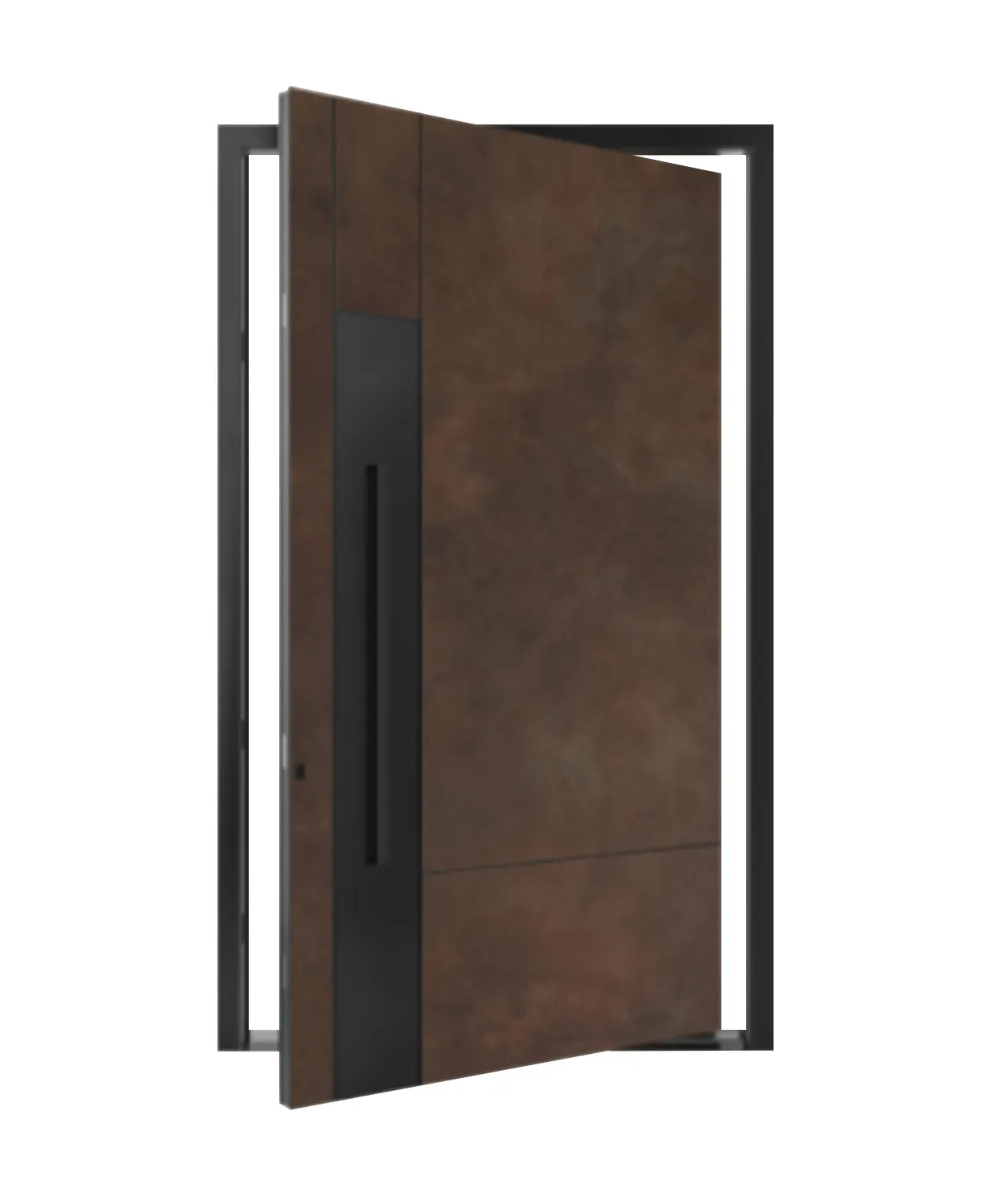

A pivot door for external installation, whose main features are its large dimensions and unusual design. The offset pivot axis gives them a unique appearance and the concealed hinges are characterised by a very high load capacity.
Downloads
Wybierz model, który spełni Twoje oczekiwania.
MasterLine 8
Reynaers
Technical data
- Hinge - has adjustment for possible correction
- sash in panel design or with insulated glass up to 62mm thick
- Resistance to wind load - class C3
- Maximum sash dimensions 1700x3000mm - doors opening inwards
- Maximum weight - 200kg
- Watertightness - class 4A
- Air tightness - class 4
- Installation depth 77mm
- FUHR espagnolettes made of stainless steel, it is possible to use a single espagnolette or two synchronized ones connected electronically
MB-86N Pivot Door
Aluprof
Technical data
- hinge – features adjustment and a built-in cable duct, enabling the use of an illuminated handle and access control on the leaf
- skrzydła w wykonaniu panelowym lub ze szkłem zespolonym o grubości do 60 mm
- Resistance to wind load - Class C3
- large sashes up to 2 m wide and 3.4 m high,
- maximum weight - 500kg
- Watertightness - class 3B
- Air tightness - class 3
- Fitting depth 77 mm
- FUHR espagnolettes made of stainless steel, possible use of a single espagnolette or two synchronised, electronically connected ones

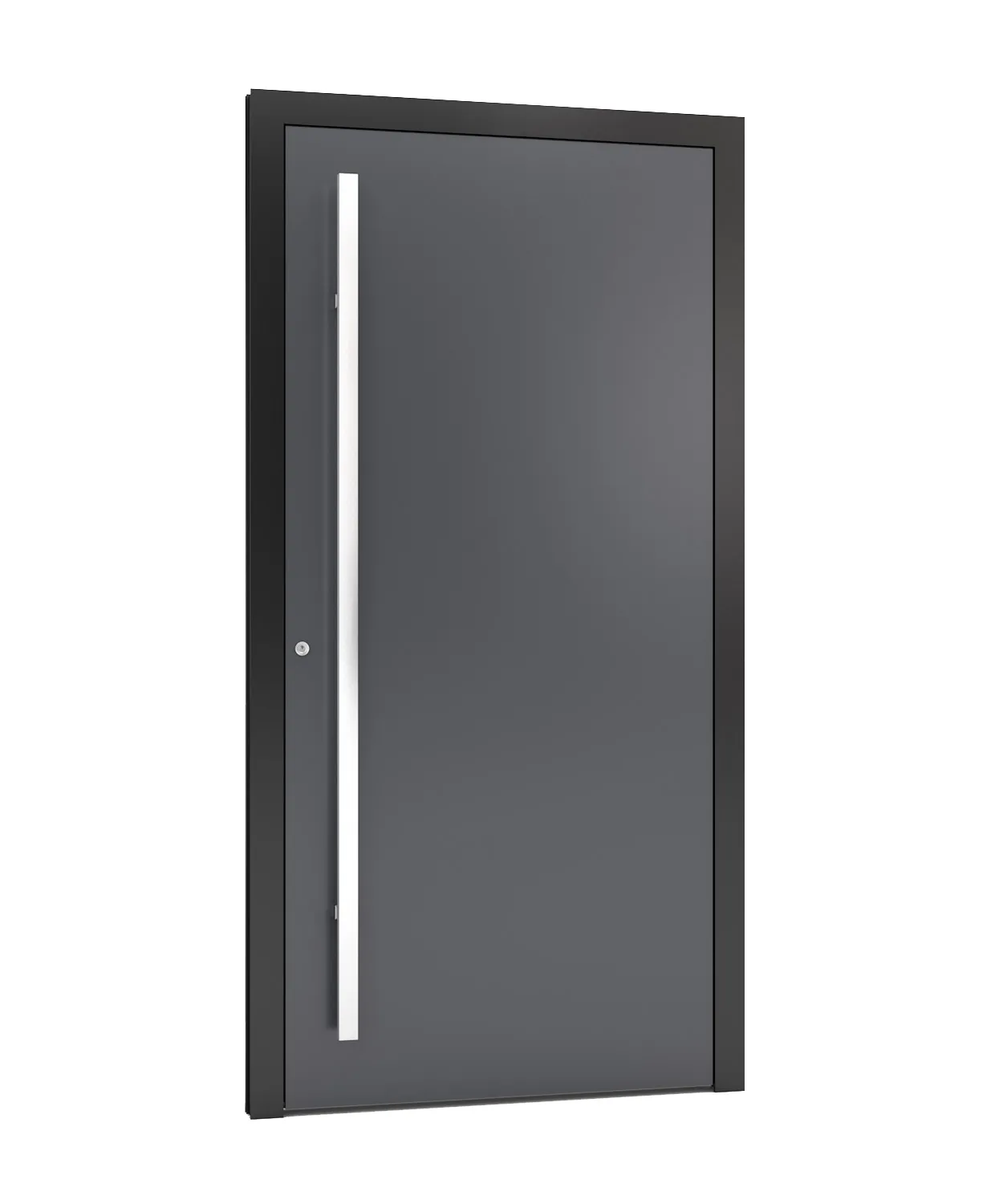

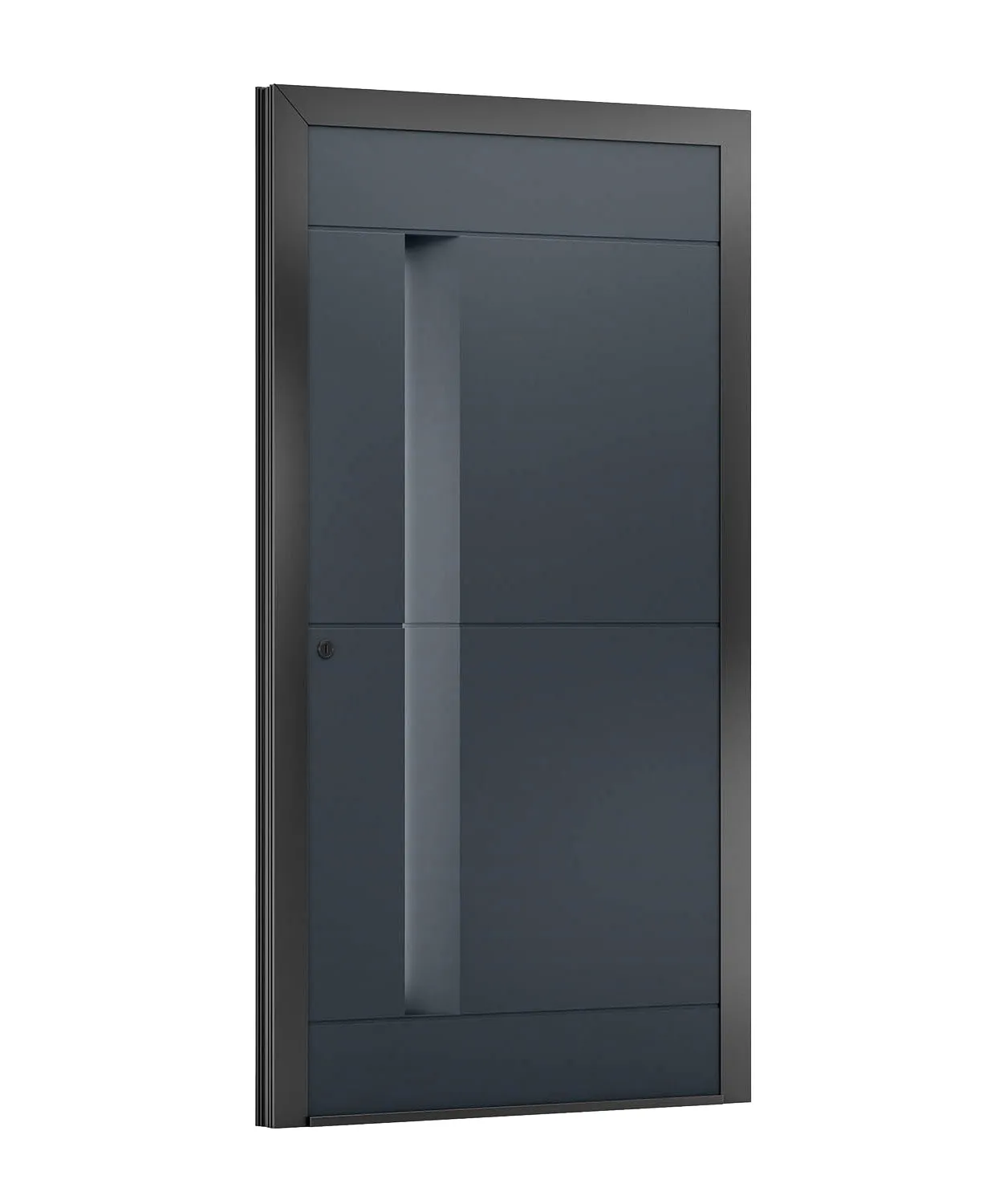

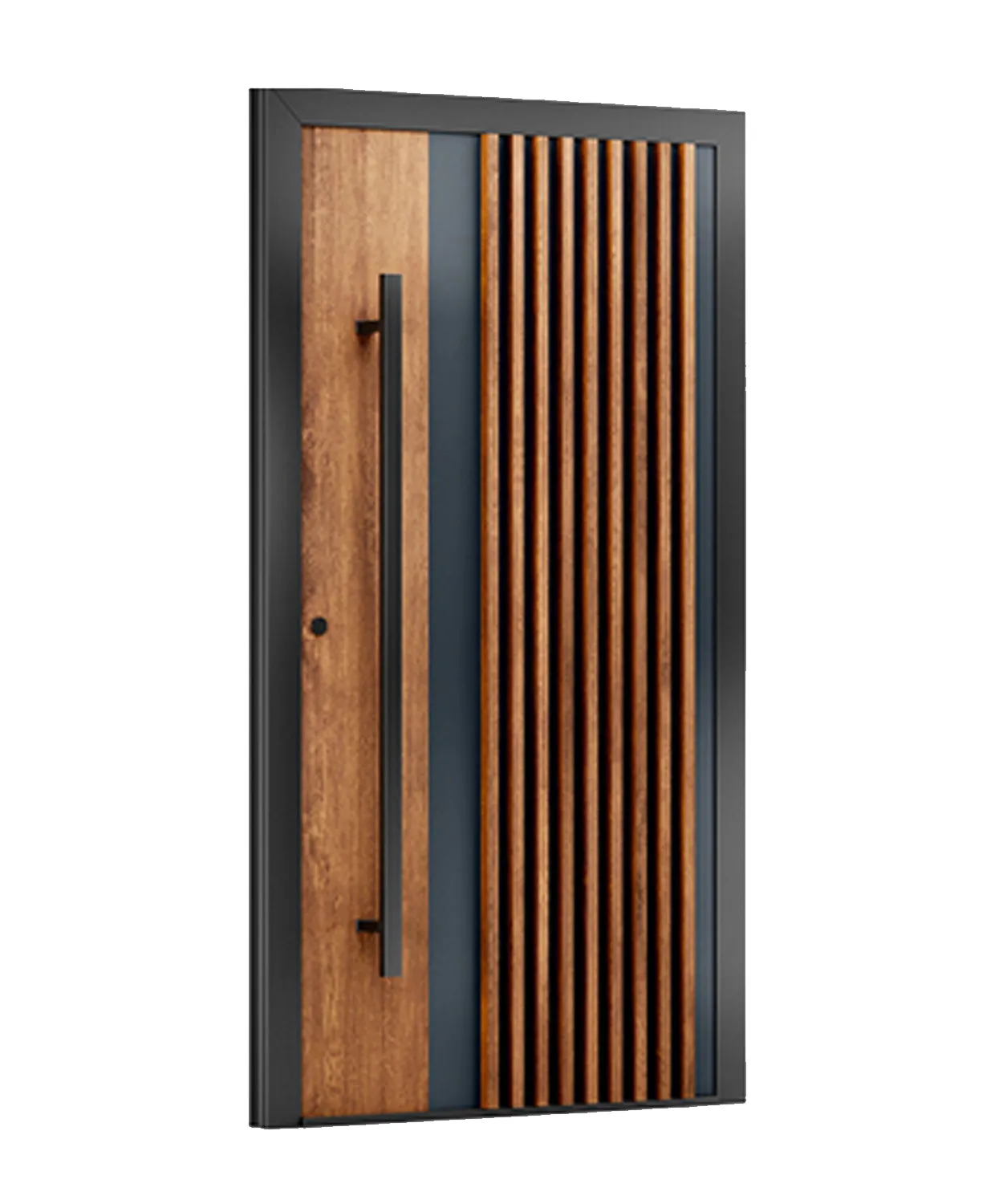

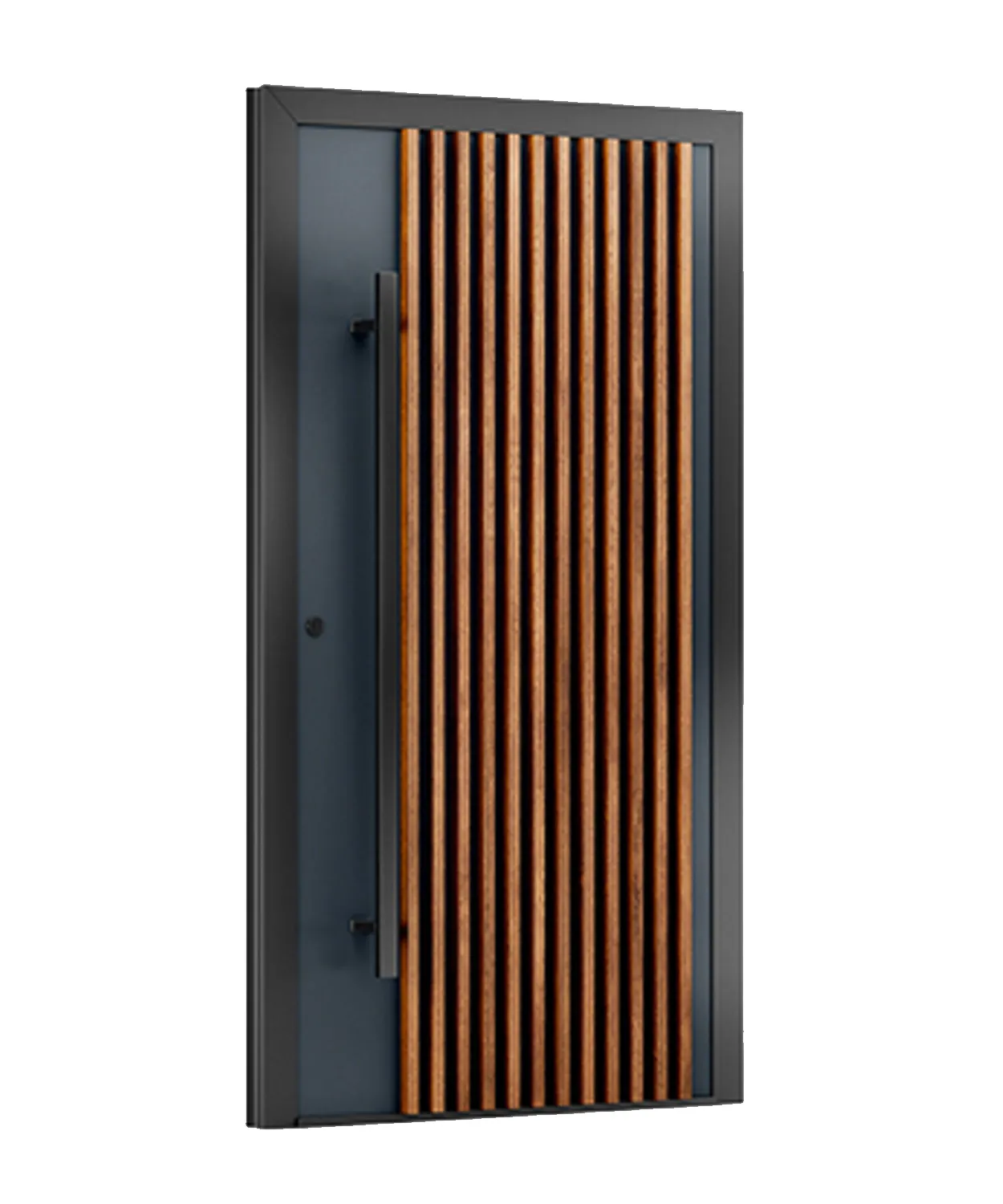

Infill patterns
Some patterns are available in their mirror image.
sandwich panel
sandwich panel
sandwich panel
sandwich panel
sandwich panel
sandwich panel
sandwich panel
sandwich panel
sandwich panel
Door structures
Modern architecture often requires from us to design door structures with different dimensions, shapes, specifications, etc. They determine not only the look of the door but also its functional properties, stability, and durability.
The spacers used in Drutex doors help significantly increase door rigidity and at the same time ensure a unique, custom design.

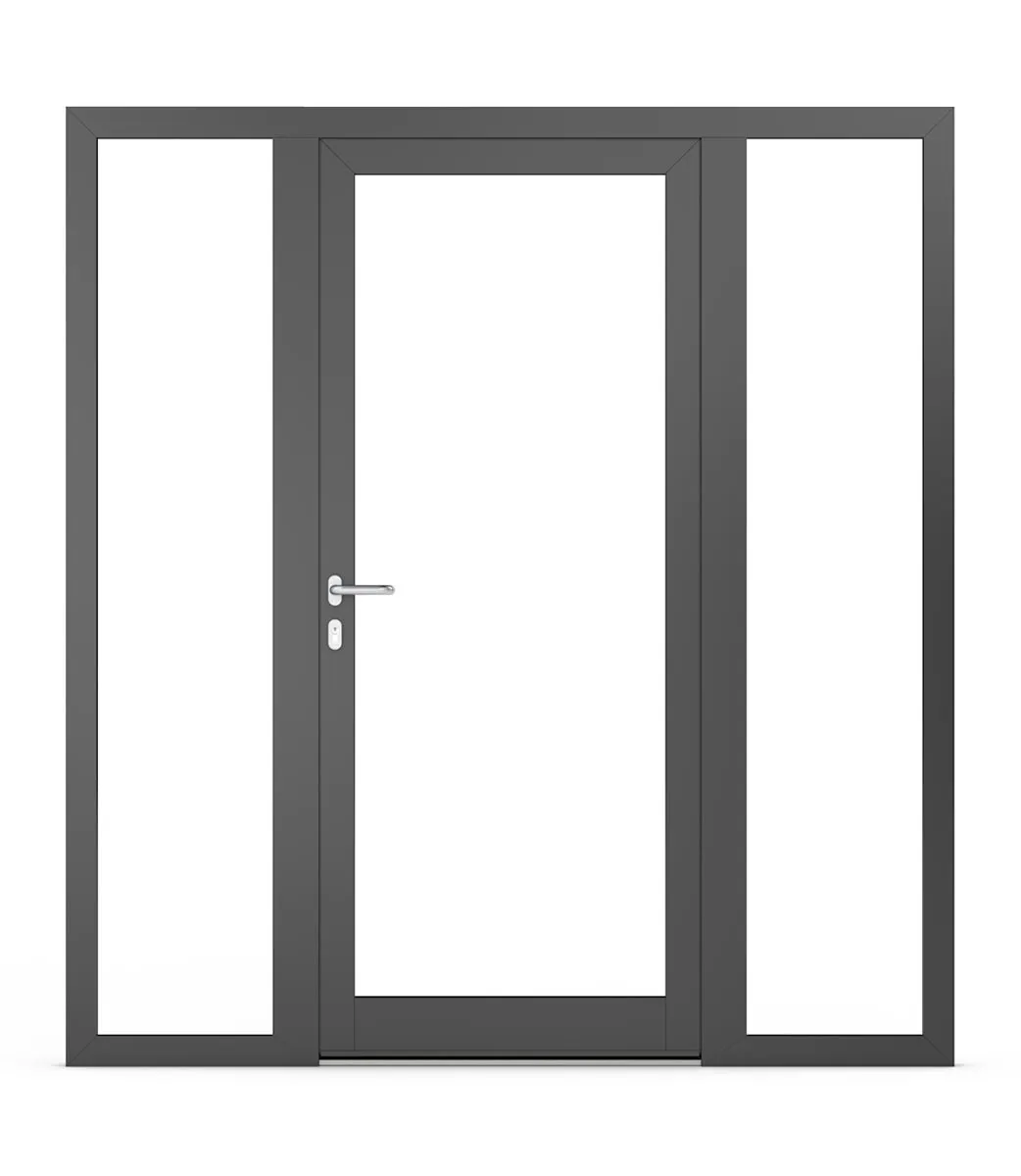

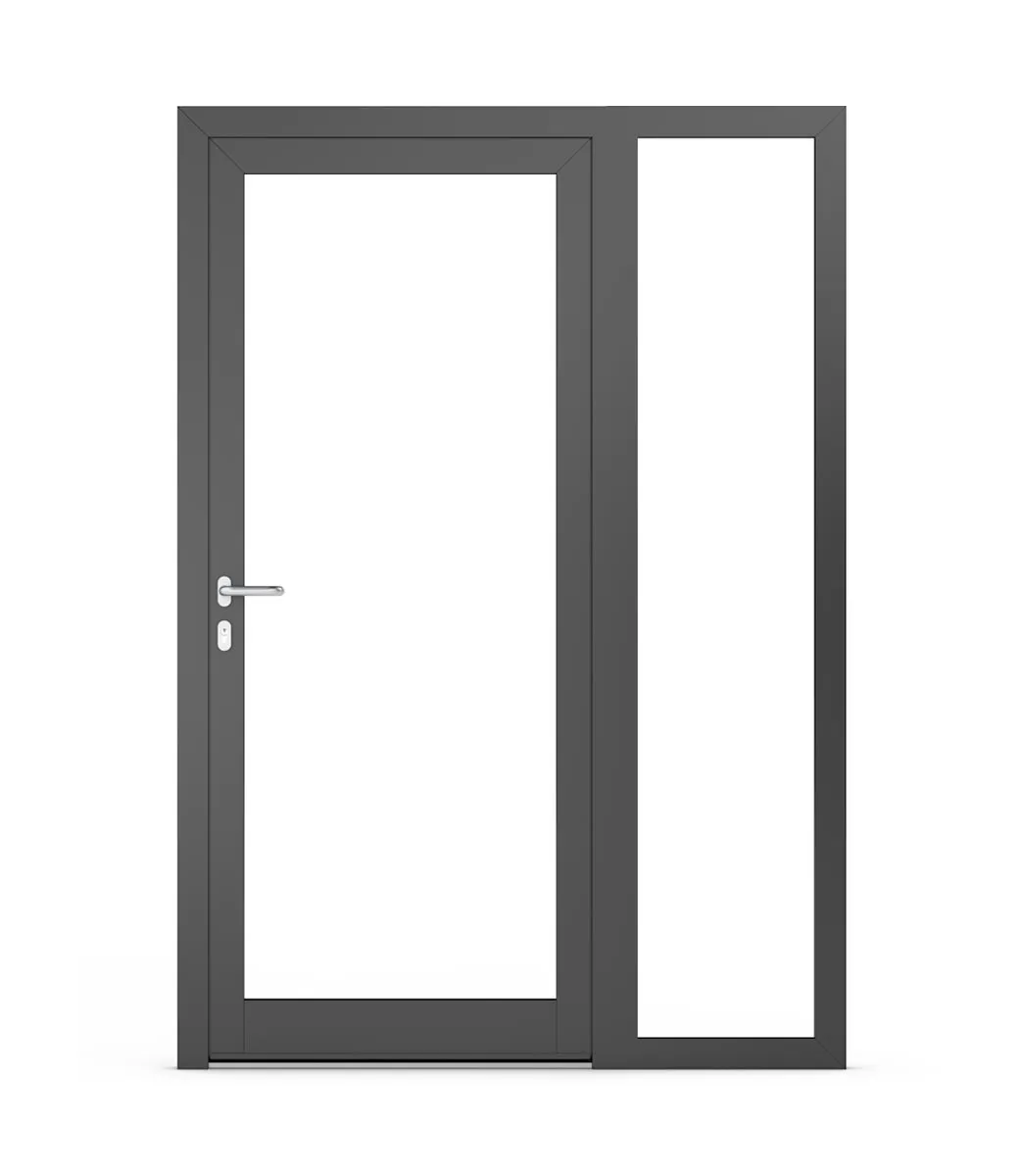

Fanlights in aluminium doors
- Option 1

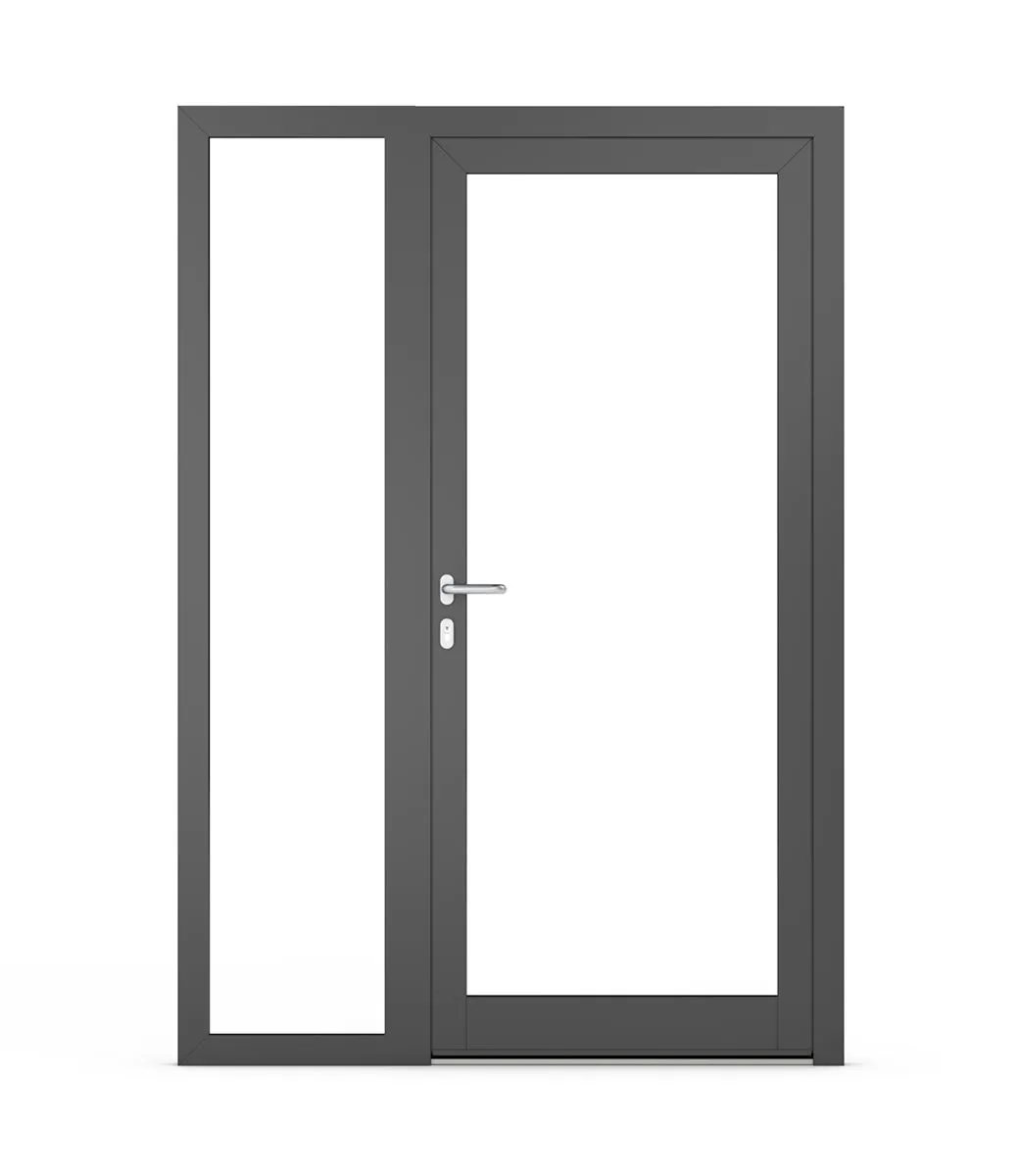

Fanlights in aluminium doors
- Option 2
Fanlights in aluminium doors
- Option 3
Glass
DRUTEX, with over 30 years of experience in the production of composite glass, offers a very wide range of glass with which you can fit your windows and doors. They meet strict requirements for energy efficiency and sound insulation. The offer also includes laminated glass (safe and burglar-proof), sun protected glass, glass with enhanced sound insulation, tempered, ornamental and sandblasted glass.
Opcje dodatkowe
Sandblasted glass
Express your unique style on your windows and doors. We offer the possibility of creating any sandblasting pattern in three shades of gray.
See all
Example 1
Example 2
Example 3
Example 4
Example 5
Example 6
Example 7
Example 8
Example 9
Example 10
Example 11
Example 12
Example 13
Example 14
Example 15
Example 16
Example 17
Example 18
Example 19
Example 20
Example 21
Example 22
Example 23
Example 24
Example 1
Example 2
Example 3
Example 4
Example 5
Example 6
Example 7
Example 8
Example 9
Example 10
Example 11
Example 12
Example 13
Example 14
Example 15
Example 16
Example 17
Example 18
Example 19
Example 20
Example 21
Example 22
Example 23
Example 24
Door handles and pulls
Our handles for windows, doors and terrace systems made of PVC, aluminium and wood are distinguished by their high aesthetics, functionality and durability. Thanks to various colour options, they can be perfectly matched colour of the windows, doors, or the colour scheme of the building.
door handle R32 (stainless steel)
M2 door rail (white)
M2 door rail (brown)
M2 door rail (silver)
P10D door rail
P45 door rail (stainless steel)
Q10 door rail (stainless steel)
Q45R door rail (stainless steel)
Z1 door rail (stainless steel)
door handle R32 (stainless steel)
M2 door rail (white)
M2 door rail (brown)
M2 door rail (silver)
P10D door rail
P45 door rail (stainless steel)
Q10 door rail (stainless steel)
Q45R door rail (stainless steel)
Z1 door rail (stainless steel)
