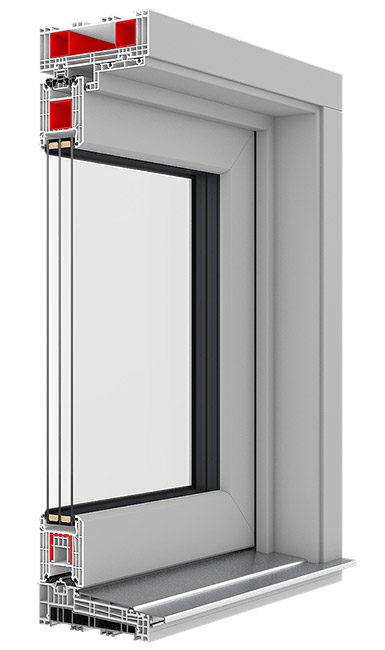

IGLO-HS

Perfection in every detail

3
EPDM gaskets
Uw = 0,71 W/(m2K)*
THERMAL TRANSMITTANCE
7
NUMBER OF CHAMBERS
194 mm
INSTALLATION DEPTH
36-52 mm
Glass packages
EPDM gaskets
3
THERMAL TRANSMITTANCE
Uw = 0,71 W/(m2K)*
NUMBER OF CHAMBERS
7
INSTALLATION DEPTH
194 mm
Glass packages
36-52 mm

IGLO-HS

An ideal solution to create trendy, large-size terrace and balcony glazing to give interiors a unique feel.
With its extremely durable structure, this terrace system supports leaves up to 400 kg. A low aluminium threshold that can be hidden in the floor adds to its excellent functionality.

Downloads

Brochure

PVC terrace system colour range

Choose the colour that suits you Over 30 veneer colours to choose from.
Dark Green
612505-167
Palisander
851805-167
Dark Red
308105-167
Chocolate Brown
887505-167
Moss green
1600505-167
Natural Oak
3118076-167
Oregon
2115008-167
White FX
915205-168
Grey
715505-167
Anthracite
701605-167
Winchester
49240015-148
Quartz Grey
703905-167
Basalt Grey
701205-167
Quartz Grey Smooth
703905-097
Basalt Grey Smooth
701205-097
Anthracite Smooth
701605-097
Concrete Grey
702305-167
Sheffield Oak Light
F456-3081
Slate Grey Smooth
(7015) 02.11.71.000040-097
Nut
2178007-167
Dark Oak
2052089-167
Creamy
1137905-167
Douglas
3152009-167
Golden Oak
2178001-167
Mahogany
2097013-167
Macore
3162002-167
Crown Platinum
9.1293001-195
Light Grey
725105-167
Iron Glimmer Slate
(DB703) 1.0065002-097
Black Ulti-Matt
02.20.01.000002-504700-047
Anthracite Ulti-Matt
02.20.71.000001-504700-047
Turner Oak
F470-3001
Jet black
Jet black
Pyrite
02.12.17.000001-195
Choose colour:
Dark Green
612505-167

Glass

DRUTEX, with over 30 years of experience in the production of composite glass, offers a very wide range of glass with which you can fit your windows and doors. They meet strict requirements for energy efficiency and sound insulation. The offer also includes laminated glass (safe and burglar-proof), sun protected glass, glass with enhanced sound insulation, tempered, ornamental and sandblasted glass.

PVC terrace systems

Create the terrace system that will meet your expectations.
Frames
Galvanised steel frame is the standard. Hoever It is possible to choose the Swisspacer Ultimate warm frame.
See all
Muntin bars
Muntin bars will add classic and timeless style to your windows and doors.
See all
Sandblasted glass
Express your unique style on your windows and doors. We offer the possibility of creating any sandblasting pattern in three shades of gray.
See all
Terrace system automation
See all

Compare products

Technical dataIGLO-HSIGLO-HSMB-59HS HIMB-59HS HIMB-77HS HI MONORAILMB-77HS HI MONORAILIGLO-HS ALUCOVERIGLO-HS ALUCOVERMB-77HS HIMB-77HS HIDUOLINE HSDUOLINE HSSOFTLINE HSSOFTLINE HS
Number of chambers

7

3

3

7

3

Solid profile

Solid profile

Installation depth

194 mm

174 mm

174 mm

206 mm

174 mm

194/214/234 mm

164/184/204 mm

Number of gaskets

2

2

2

2

2

3

2

Thermal transmittance

 Uw = 0,71 W/(m2K)*

*for a structure measuring 2,700 x 2,300 with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4

Uw = 1,8 W/(m2K)*

*for a structure measuring 4,000 x 2,200 with T4 glass + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4

Uw = 0,75 W/(m2K)*

*for a structure measuring 4,000 x 2,200 with T4 glass + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4

 Uw = 0,73 W/(m2K)*

*for a structure measuring 4000x2500mm with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4

Uw = 1,0 W/(m2K)*

*for a structure measuring 4,000 x 2,200 with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4

PINE 68 Uw=1,0 *1  /   PINE 78 Uw=0,85 *2  /  PINE 88 Uw=0,79 *3
MERANTI 68 Uw=0,96 *1  /  MERANTI 78 Uw=0,80 *2  /  MERANTI 88 Uw=0,75 *3

*1 for terrace system 3600x2450 mm with glass Ug=0,8 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*2 for terrace system 3600x2450 mm with glass Ug=0,6 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*3 for terrace system 3600x2260 mm with glass Ug=0,5 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method

PINE 68 Uw=1,06 *1 /  PINE 78 Uw=0,89 * /  PINE 88 Uw=0,83 *3
MERANTI 68 Uw=1,02 *1 /   MERANTI 78 Uw=0,85 *2   /  MERANTI 88 Uw=0,79 *3

*1 for terrace system 3600x2450 mm with glass Ug=0,8 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*2 for terrace system 3600x2450 mm with glass Ug=0,6 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*3 for terrace system 3600x2260 mm with glass Ug=0,5 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method

Glass packages

36-52 mm

9-61 mm

9-61 mm

36-52 mm

9-61 mm

DL68: 24-44mm
DL78: 24-50mm
DL88: 24-58mm

SL68: 24-32mm
SL78: 24-44mm
SL88: 24-54mm
