Terrace systems ▸ Tilt and slide PSK

DUOLINE PSK

Tilt and slide balcony doors - PSK DUOLINE

Elegant, durable tilt and slide doors in wood and aluminium technology.

High-quality wooden profiles available in three depth options and in three wood types, ensuring classic look that matches perfectly the flat interior.
A number of coluor combinations both for wooden profiles and the aluminium clads.
A possibility to produce large-size glazing that guarantees access to daylight in the room.
High safety level thanks to the aluminium profile stability combined with MACO fittings.
Easy to conservate.
Focus on ecology because of special water-based types of varnish.
Wide possibilities to customize the interior resulting from great selection of covering (RAL) and transparent paints.
High level of energy efficiency and sound insulation cause of optimum quality of materials used for production, special sealing system and the proper glass packages.

Features

Profile

Wooden profile - 68mm in two types of wood: three- or four-layer solid square timber: meranti 450+ and pine.

Glass

Two-glass package of 24 mm thickness, with thermal transmittance coefficient of Ug=1,0 W/(m²K) according to PN-EN674 in standard. The possibility to apply two or three-glass packages.

For Duoline 68 mm – max. glass package is 46 mm with thermal transmittance coefficient of Ug = 0,6 W/(m²K).

Glass with enhanced sound insulation, tempered, safety, anti-burglary, ornament, solar protective.

Fittings

Tilt and slide MACO MULTI MATIC KS fittings with 4 locking bolts and micro ventilation bolt.

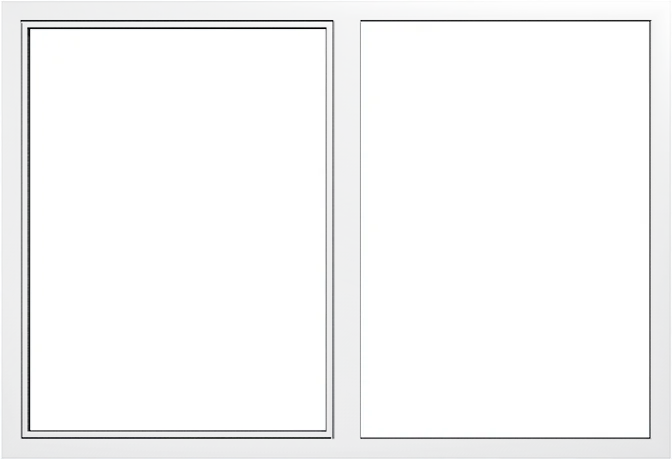

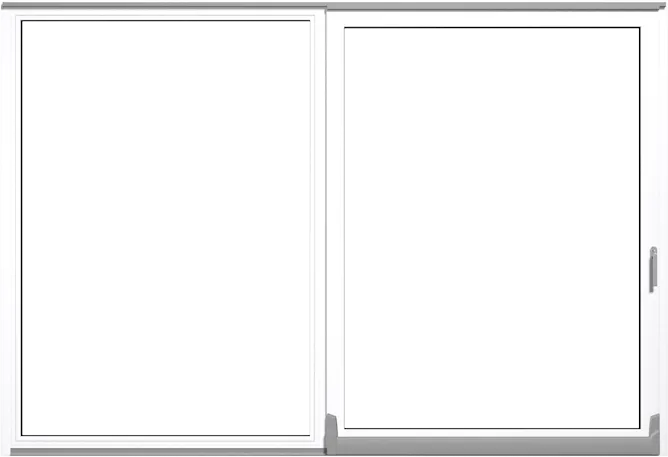

Colour range

Choose a colour that suits you

Gallery

Related products

DUOLINE - 68, 78, 88
Wood-aluminum windows

DUOLINE HS
Lift and slide HS

DUOLINE PSK
Tilt and slide PSK

Additional features

Handbook

Compare products: Terrace systems ▸ Tilt and slide PSK

A five-chamber profile of frame and sash, made exclusively of A-class prime material for an installation depth of 70 mm.

7-chamber frame and sash profiles are made exclusively of a prime material in A-class with installation depth of 82 mm.

5-chamber frame and sash profiles made exclusively of prime material in A-class with installation width 70 mm.

Profiles have a three-chamber structure with the constructional depth of the sections of 70 mm (frame), 79 mm (sash) with a thermal separator made of polyamide reinforced with glass fiber and the application of special inserts that insulate inside the section and the space between window panes in MB-70Hi system.

Wooden profile - 68mm in two types of wood: three- or four-layer solid square timber: meranti 450+ and pine.

Choice between profiles 68 mm, 78 mm and 88 mm in two types of wood: three- or four-layer solid square timber: meranti 450+, pine.

Glass

Single-chamber glass package with heat transfer coefficient Ug = 1.0 W/(m2K), according to PN-EN674 in standard.; It is possible to use a three-glass package with a coefficient of Ug = 0.7 W/(m2K).The maximum glass thickness is 36 mm. Possibilty to use glazing with higher acoustic insulation properties, tempered glass, safety glass, anti-burglary glass, ornaments or solar protective one.

Glass package of 4/18/4/18/4 with thermal transmittance Ug = 0,5 W/(m²K) in standard. The possibility to apply four-glass package filled with krypton and Ug = 0,3 W/(m²K); maximal glazing thickness up to 48 mm. The possibility to apply the glasses with enhanced sound insulation, tempered, safety, anti-burglary, ornament, or solar protective.

One-chamber glass package with thermal transmittance Ug=1,0 W/(m²K) according to the PN-EN674 norm in standard. The possibility to apply three-glass package with Ug = 0,6 W/(m²K). Maximal glazing thickness up to 40 mm. The possibility to apply glasses with enhanced sound insulation, tempered, safety, anti-burglary, ornament or solar protective.

Glass packages up to 50 mm avaiable. One-chamber glass package with thermal transmittance of Ug = 1,0 W/(m²K) according to PN-EN674. The possibility to apply a three-glass package of Ug 0,5 W/(m²K) coefficient with enhanced sound and insulating, tmepred, safety, anti-burglary, ornament, solar protective glass.

Two-glass package of 24 mm thickness, with thermal transmittance coefficient of Ug=1,0 W/(m²K) according to PN-EN674 in standard. The possibility to apply two or three-glass packages.

For Duoline 68 mm – max. glass package is 46 mm with thermal transmittance coefficient of Ug = 0,6 W/(m²K).

Glass with enhanced sound insulation, tempered, safety, anti-burglary, ornament, solar protective.

Two-glass package of 24 mm thickness with thermal transmittance coefficient of Ug = 1,0 W/(m²K) according to PN-EN674 in standard. The possibility to apply three-glass packages.

For Duoline 68 mm – max. glass package is 32 mm with thermal transmittance coefficient of Ug = 0,8 W/(m²K).
For Duoline 78 mm - max. glass package is 44 mm with thermal transmittance coefficient of Ug = 0,6 W/(m²K).
For Duoline 88 mm – max. glass package is 54 mm with thermal transmittance coefficient of Ug = 0,5 W/(m²K) with three-glass package. The possibility to apply a four-glass package with krypton with thermal transmittance coefficient of Ug=0,3 W/(m²K).

Glass with enhanced sound insulation,tempered, safety, anti-burglary, ornament, solar protective avaiable.

Spacer frame

Steel galvanized spacer frame in standard; optionay Swisspacer Ultimate frame available in various colours.

Steel galvanized spacer frame in standard. Optionally Swisspacer Ultimate available in various colour options.

Steel galvanized frame in standard and optionally Swisspacer Ultimate available in various colour options.

In standard steel galvanized frame. Optionally Swisspacer Ultimate available in various colour options.

Steel galvanized frame in standard and also Swisspacer Ultimate available in various colour options.

Fittings

Four anti-burglary bolts in standard.

Maco Multi Matic KS fittings. There is a possibility to apply automatic fittings, that support tilt closing. Four anti-burlgary bolts.

The possibility to apply automatic fitting that supports tilt closing. Four anti-burglary bolts in standard.

Maco Multi Matic KS with four anti-burglary bolts in standard.

Tilt and slide MACO MULTI MATIC KS fittings with 4 locking bolts and micro ventilation bolt.

Lift and slide MACO fittings.

Reinforcement

Solid close steel with the screwed anti-burglary bolts as a frame reinforcement. C-beam reinforcemet in sash.

Frame reinforcement – full steel (closed). In the full reinforcement, anti-burglary bolts are screwed to the steel. C-shaped reinforcement beam in the sash.

Gaskets

The window is equipped with a double-sealing system: external and internal EPDM sealing available in black and grey colours.

The doors are equipped with the system of triple sealing: external, internal, made of EPDM, and central, made of foamed EPDM. External and internal gaskets are available in black and grey colours.

The door is equipped with a system of double sealing; external, internal made of EPDM, available in black, grey colours. Gasket that fullfills the bottom fitting ditch in standard.

Glass and cover gaskets made of EPDM. Central gasket made of two-component synthetic rubber EPDM, solid and cellular.

Central seal.

Colour range

The system is available in colours of Renolit foil colours on white and brown core.

The system is available in Renolit foil colours on white or brown core.

According to the RAL color range and wood-grain coating from Aluprof ColorCollection

Great selection of covering (RAL range) or transparent paints.

Sound isolation
-
Rw = 35-46 dB
-
-
-
-
